GN 951.1 Steel Square U-Bolts

Manufacturer	JW Winco
Description	Steel Square U-Bolts
Part Number	951.1-M4-21-56-ST
ECLASS 9.1	21049190
Customs fee number	82057000
RoHs	Yes
Weight	0.024 lbs
Material	ST - Steel

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	d1	b	l1	d2	l3	Size	GN 851 / GN 851.3 r at w2 = 0	w2	Size	GN 851.1 / GN 851.2 r at w2 = 0	w2	Material
1	1	951.1-M4-21-56-ST	M 4	21	56	3.4	27.5	160	35	11				ST - Steel
2	8	951.1-M4-21-70-ST	M 4	21	70	3.4	28.5	160	48	12	160	52	10	ST - Steel
3	9	951.1-M4-21-103-ST	M 4	21	103	3.4	30	160	80	14	160	82	14	ST - Steel
4	10	951.1-M4-21-153-ST	M 4	21	153	3.4	35	160	125	19	160	127	19	ST - Steel
5	11	951.1-M4-21-203-ST	M 4	21	203	3.4	35	160	175	19	160	177	19	ST - Steel
6	12	951.1-M6-32-78-ST	M 6	32	78	5.2	33	320	54	13				ST - Steel
7	13	951.1-M6-32-110-ST	M 6	32	110	5.2	44	320	75	24	320	78	21	ST - Steel
8	14	951.1-M6-32-130-ST	M 6	32	130	5.2	45	320	94	25	320	94	25	ST - Steel
9	15	951.1-M6-32-155-ST	M 6	32	155	5.2	45	320	119	25	320	119	25	ST - Steel
10	2	951.1-M6-32-205-ST	M 6	32	205	5.2	45	320	169	25	320	169	25	ST - Steel
11	3	951.1-M8-38-111-ST	M 8	38	111	7.2	52	700	70	26				ST - Steel
12	4	951.1-M8-38-127-ST	M 8	38	127	7.2	60	700	78	34				ST - Steel
13	5	951.1-M8-38-143-ST	M 8	38	143	7.2	56	700	102	30	700	102	25	ST - Steel
14	6	951.1-M8-38-157-ST	M 8	38	157	7.2	60	700	108	34	700	108	34	ST - Steel
15	7	951.1-M8-38-207-ST	M 8	38	207	7.2	60	700	158	34	700	158	34	ST - Steel

Product Description

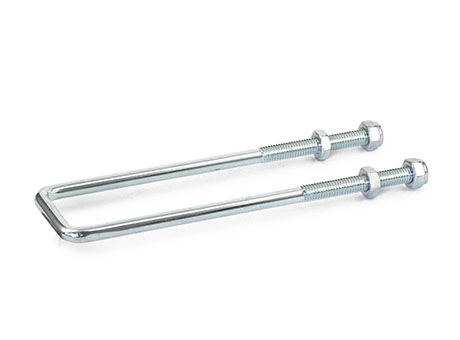

Square U-bolts GN 951.1 are offered in a variety of length options for use with latch type toggle clamps GN 851, GN 851.1, GN 851.2, and GN 851.3.
