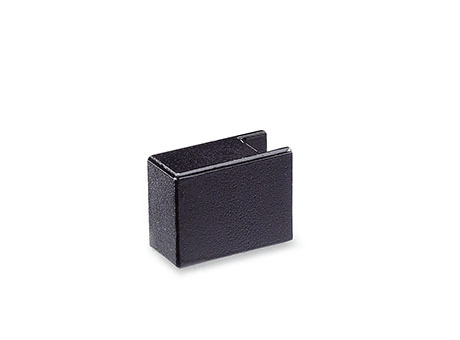

GN 810.17 Steel Clamping Arm Extenders, for Knee Lever Modules GN 810.12 / GN 810.13

Manufacturer	JW Winco
Description	Steel Clamping Arm Extenders, for Knee Lever Modules GN 810.12 / GN 810.13
Part Number	810.17-220
ECLASS 9.1	21049290
Customs fee number	8205700090
RoHs	Yes
Weight	0.050 lbs
Material	ST - Steel

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Size	b1	b2	h	Length l	t	Material
1	1	810.17-220	220	10	6	16	15.5	6.5	ST - Steel
2	2	810.17-440	440	15	10	24	16	8	ST - Steel
3	3	810.17-850	850	20	12	30	22.1	15	ST - Steel
4	4	810.17-1540	1540	25	16.2	35	23.5	15	ST - Steel

Product Description

Clamping arm extenders GN 810.17 are accessories for knee lever modules GN 810.12 / GN 810.13.

Documentation

Product information
