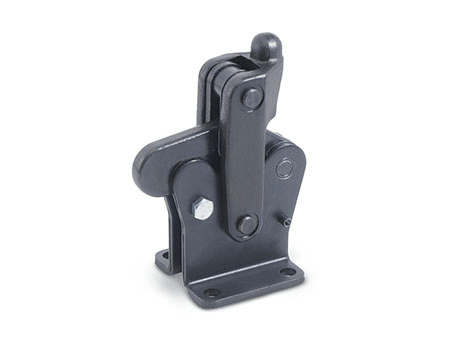

GN 810.12 Steel Knee Lever Modules, with Horizontal or Vertical Mounting Base

Manufacturer	JW Winco
Description	Steel Knee Lever Modules, with Horizontal or Vertical Mounting Base
Part Number	810.12-220-C
ECLASS 9.1	21041717
Customs fee number	8205700090

RoHs	Yes
Weight	0.564 lbs
Type	C - With horizontal mounting base
Material	ST - Steel

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Size	FH Holding capacity	b1	b2	b3	b4	d	h1	h2	h3	h4	h5	l1	l2	l3	m1	m2	m3	m4	r	s1	s2	Type	Material
1	1	810.12-220-C	220	2200	36	48	13	6	6.5	74	89	30	45.5	17.5	57.5	24	29	20	32	8	8	50	3.5	6	C - With horizontal mounting base	ST - Steel
2	2	810.12-220-G	220	2200	36	48	13	6	6.5	74	89	30	45.5	17.5	57.5	24	29	20	32	8	8	50	3.5	6	G - With vertical mounting base	ST - Steel
3	3	810.12-440-C	440	4400	54	65	20	10	8.5	121	140.5	50	69.5	28	85.5	32	42.5	30	45	12	10	73	5	10	C - With horizontal mounting base	ST - Steel
4	4	810.12-440-G	440	4400	54	65	20	10	8.5	121	140.5	50	69.5	28	85.5	32	42.5	30	45	12	10	73	5	10	G - With vertical mounting base	ST - Steel
5	5	810.12-850-C	850	8500	75	75	24	12	10.5	158	180	67	88	35	115	38	52	55	55	10	10	99	6	12	C - With horizontal mounting base	ST - Steel
6	6	810.12-850-G	850	8500	75	75	24	12	10.5	158	180	67	88	35	115	38	52	55	55	10	10	99	6	12	G - With vertical mounting base	ST - Steel
7	7	810.12-1540-C	1540	15400	90	100	34	16	12.5	193	222	76.5	106	40	147.5	53	68	65	75	12.5	17.5	127.5	8	16	C - With horizontal mounting base	ST - Steel
8	8	810.12-1540-G	1540	15400	90	100	34	16	12.5	193	222	76.5	106	40	147.5	53	68	65	75	12.5	17.5	127.5	8	16	G - With vertical mounting base	ST - Steel

Product Description

Knee lever modules GN 810.12 have the same properties and attributes as the toggle clamps GN 810.10 / GN 810.11. The clamping arms are die-forged, the remaining steel sheet parts have been reinforced, bearing pins and rivets are hardened and ground.

Therefore knee lever modules are suitable for applications in which substantial forces occur and in which a long service life is required.

During extensive testing, with trouble free function and under load, the clamp has withstood over one million opening and closing cycles.

These knee lever modules permit the size and position of the lever and clamping arms to be adjusted to match the specific application.
