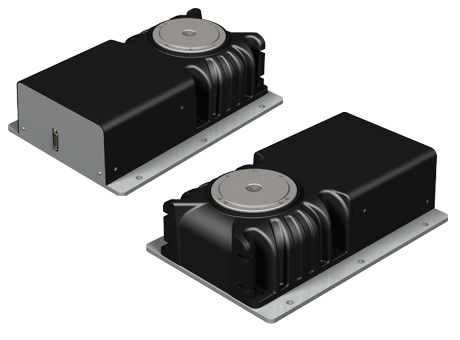

Rotary indexing table RF 1

Manufacturer	isel Germany GmbH
Description	Rotary indexing table RF 1 - Stepper motor MS 200 HT without encoder, Without brake, 1:24, Stepper motor SubD9
Part number	260241 0200
Mass	14.6 kg

CAD models

Request for quotation

Product selection

Motor

Brake

Reduction

Connector plug

Index	Selector	Output speed (1/min)	Operating torque (0 - 500 Hz) (Nm)	Operating torque (500 - 1000 Hz) (Nm)	Rated torque (Nm)	Rated holding torque (static load) (Nm)	Angle accuracy (°)	Weight (kg)
1	1	0 - 50	20	18	-	37	0.16	14.6

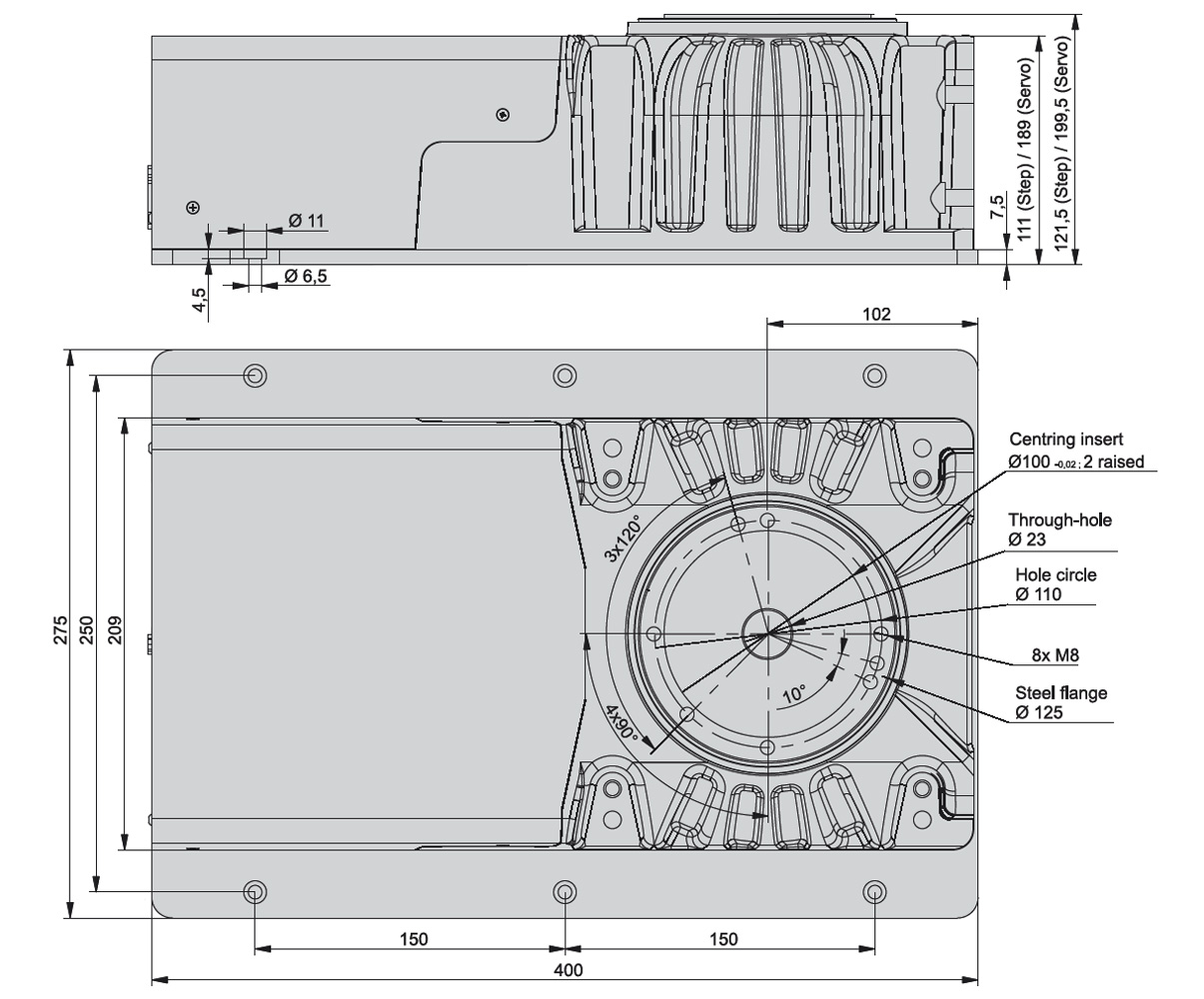

Mechanics
