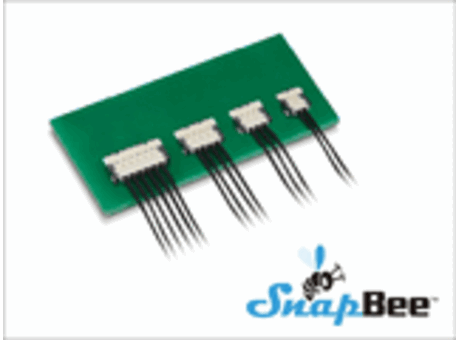

DF58 Series - Small-Sized, Low Profile 1.0mm Height, Wire-to-Board Connectors for Power



Manufacturer	Hirose
Description	DF58 Series - Small-Sized, Low Profile 1.0mm Height, Wire-to-Board Connectors for Power -DF58-2830SCF-CL0666-1011-0-00
Part Number	DF58-2830SCF
Mass	5.0000000000000001E-3

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Mass	Wire Termination Method	Withstanding voltage	Connector Type	Finger Protection	Locking Style	Mating/Unmating Cycles	Operating Temperature (Max.)	Operating Temperature (Min.)	Contact Plating	RoHS	Rated Current	Rated Voltage (AC)	Rated Voltage (DC)	HRS No.	Plating Thickness	CL code	Discontinued	Product type	UL Style Wire/Cable	Connector Class	Packaging Type	Series Name	Wire Harness Component	ZIF/Non-ZIF/LIF	Electrical Shields	Applicable Max. Wire Size (AWG)	Applicable Min. Wire Size (AWG)	Product Name	Purchase quantity	Applicable Wire Insulation Diameter (min)	Applicable Wire Type	Number of Rows	Key	Recommended Wire Type	Public Level	Open Start Date	Open End Date	New Product Class	Notes on Recommended Wire (JP)	Connector Height	Connector Length	Connector Width	Housing Color	Number of Positions	Mounting Style	Contact Pitch	Mating Mates	Mounting Pitch	Mounting Side	Direction of the opening	Pick-up Tape
1	1	DF58-2830SCF	DF58 Series - Small-Sized, Low Profile 1.0mm Height, Wire-to-Board Connectors for Power -DF58-2830SCF-CL0666-1011-0-00	5.0000000000000001E-3	Crimping	500	Contact	No	ViSe-lock	10	85	-55	Tin	Handled	3	100	100	6661011000	1	CL0666-1011-0-00	0	product	UL1571	Wire-to-Board	Reel	DF58	No	Non-ZIF	No	28	30	DF58-2830SCF	40000	0.5	0.6	1	No	Discrete wire	openAll	2016/7/29 00:00	9999/12/31 23:59	Original	0
2	2	DF58-2P-1.2V(21)	DF58 Series - Small-Sized, Low Profile 1.0mm Height, Wire-to-Board Connectors for Power -DF58-2P-1.2V(21)-CL0666-1001-0-21	1.4E-2		500	Header	No	ViSe-lock	10	85	-55	Tin	Handled	3	100	100	6661001021	1	CL0666-1001-0-21	0	product		Wire-to-Board	Reel	DF58	No	Non-ZIF	No			DF58-2P-1.2V(21)	6000			1	No		openAll	2016/12/20 00:00	9999/12/31 23:59	Original		0.95	4.5	4.7699999999999996	Black	2	SMT	1.2	CL0666-1006-0-00	1.2	Standard on-Board	Straight	No
3	3	DF58-2S-1.2C	DF58 Series - Small-Sized, Low Profile 1.0mm Height, Wire-to-Board Connectors for Power -DF58-2S-1.2C-CL0666-1006-0-00	1.0999999999999999E-2	Crimping	500	Socket	No	ViSe-lock	10	85	-55		Handled	3	100	100	6661006000		CL0666-1006-0-00	0	product	UL1571	Wire-to-Board	Pack	DF58	No	Non-ZIF	No	28	30	DF58-2S-1.2C	1000	0.5	0.6	1	No	Discrete wire	openAll	2016/12/20 00:00	9999/12/31 23:59	Original		0.97499999999999998	4.5999999999999996	4.47	Beige	2		1.2	CL0666-1001-0-21	1.2
4	4	DF58-3P-1.2V(21)	DF58 Series - Small-Sized, Low Profile 1.0mm Height, Wire-to-Board Connectors for Power -DF58-3P-1.2V(21)-CL0666-1002-0-21	1.7000000000000001E-2		500	Header	No	ViSe-lock	10	85	-55	Tin	Handled	2.5	100	100	6661002021	1	CL0666-1002-0-21	0	product		Wire-to-Board	Reel	DF58	No	Non-ZIF	No			DF58-3P-1.2V(21)	6000			1	No		openAll	2016/12/20 00:00	9999/12/31 23:59	Original		0.95	5.7	4.7699999999999996	Black	3	SMT	1.2	CL0666-1007-0-00	1.2	Standard on-Board	Straight	No
5	5	DF58-3S-1.2C	DF58 Series - Small-Sized, Low Profile 1.0mm Height, Wire-to-Board Connectors for Power -DF58-3S-1.2C-CL0666-1007-0-00	1.4E-2	Crimping	500	Socket	No	ViSe-lock	10	85	-55		Handled	2.5	100	100	6661007000		CL0666-1007-0-00	0	product	UL1571	Wire-to-Board	Pack	DF58	No	Non-ZIF	No	28	30	DF58-3S-1.2C	1000	0.5	0.6	1	No	Discrete wire	openAll	2016/12/20 00:00	9999/12/31 23:59	Original		0.97499999999999998	5.8	4.47	Beige	3		1.2	CL0666-1002-0-21	1.2
6	6	DF58-4P-1.2V(21)	DF58 Series - Small-Sized, Low Profile 1.0mm Height, Wire-to-Board Connectors for Power -DF58-4P-1.2V(21)-CL0666-1003-0-21	0.02		500	Header	No	ViSe-lock	10	85	-55	Tin	Handled	2	100	100	6661003021	1	CL0666-1003-0-21	0	product		Wire-to-Board	Reel	DF58	No	Non-ZIF	No			DF58-4P-1.2V(21)	6000			1	No		openAll	2016/8/29 00:00	9999/12/31 23:59	Original		0.95	6.9	4.7699999999999996	Black	4	SMT	1.2	CL0666-1008-0-00	1.2	Standard on-Board	Straight	No
7	7	DF58-4S-1.2C	DF58 Series - Small-Sized, Low Profile 1.0mm Height, Wire-to-Board Connectors for Power -DF58-4S-1.2C-CL0666-1008-0-00	1.7000000000000001E-2	Crimping	500	Socket	No	ViSe-lock	10	85	-55		Handled	2	100	100	6661008000		CL0666-1008-0-00	0	product	UL1571	Wire-to-Board	Pack	DF58	No	Non-ZIF	No	28	30	DF58-4S-1.2C	1000	0.5	0.6	1	No	Discrete wire	openAll	2016/8/29 00:00	9999/12/31 23:59	Original		0.97499999999999998	7	4.47	Beige	4		1.2	CL0666-1003-0-21	1.2
8	8	DF58-6P-1.2V(21)	DF58 Series - Small-Sized, Low Profile 1.0mm Height, Wire-to-Board Connectors for Power -DF58-6P-1.2V(21)-CL0666-1005-0-21	2.5000000000000001E-2		500	Header	No	ViSe-lock	10	85	-55	Tin	Handled	2	100	100	6661005021	1	CL0666-1005-0-21	0	product		Wire-to-Board	Reel	DF58	No	Non-ZIF	No			DF58-6P-1.2V(21)	6000			1	No		openAll	2016/7/29 00:00	9999/12/31 23:59	Original	0	0.95	9.3000000000000007	4.7699999999999996	Black	6	SMT	1.2	CL0666-1010-0-00	1.2	Standard on-Board	Straight	No
9	9	DF58-6S-1.2C	DF58 Series - Small-Sized, Low Profile 1.0mm Height, Wire-to-Board Connectors for Power -DF58-6S-1.2C-CL0666-1010-0-00	2.4E-2	Crimping	500	Socket	No	ViSe-lock	10	85	-55		Handled	2	100	100	6661010000		CL0666-1010-0-00	0	product	UL1571	Wire-to-Board	Pack	DF58	No	Non-ZIF	No	28	30	DF58-6S-1.2C	1000	0.5	0.6	1	No	Discrete wire	openAll	2016/7/29 00:00	9999/12/31 23:59	Original	0	0.97499999999999998	9.4	4.47	Beige	6		1.2	CL0666-1005-0-21	1.2
