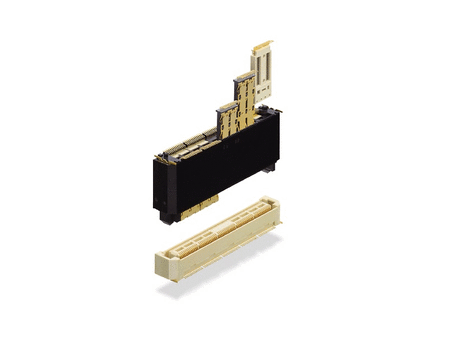

16+Gbps 0.5mm Pitch Stacking Connectors

Manufacturer	Hirose Electric Co., Ltd.
Description	16+Gbps 0.5mm Pitch Stacking Connectors - XG1 - XG1-130S-SV - CL0624-0001-2-00
Part Number	XG1-130S-SV
Cable Assembly	No
ZIF/Non-ZIF/LIF	Non-ZIF
Withstanding voltage	150
Connector Height	5,95
Connector Length	41,8
Connector Width	7,2
Connector Class	Board-to-Board
Connector Type	Receptacle
Parts
Connector Orientation	Straight
Mated Height (Min.)	20
PCB Cleaning	Yes
Contact Pitch	0,5
Floating Design	No
Mated Height (Max.)	41
Positioning Boss	Yes
Housing Color	Beige
HRS No.	CL0624-0001-2-00
Mated Height	20,30,32,33,38,40,41
Finger Protection	No

Metal Shields	No
Locking Style
Final Order Date
Mass	1,28
Mating/Unmating Cycles	20
Minimum Order Quantity	1000
Mounting Style	SMT
Transmission Rate	16
Number of Positions	100
Operating Temperature (Max.)	85
Operating Temperature (Min.)	-55
Contact Plating	Gold
Packaging Type	Reel
Mounting Pitch	0,5
RoHS	Handled
Series Name	XG1
Pick-up Tape	No
Production Status
Plating Thickness	0,2
Performance Characteristics	Ethernet,Fiber channel,Infiniband,SAS,SATA,PCIe
Rated Current	0,3
Rated Voltage (AC)	50
Termination Plan Doc No

CAD models

Request for quotation

Product selection

Index	CAD	Selector	Part Number	Description	Cable Assembly	ZIF/Non-ZIF/LIF	Withstanding voltage	Connector Height	Connector Length	Connector Width	Connector Class	Connector Type	Parts	Connector Orientation	Mated Height (Min.)	PCB Cleaning	Contact Pitch	Floating Design	Mated Height (Max.)	Positioning Boss	Housing Color	HRS No.	Mated Height	Finger Protection	Metal Shields	Locking Style	Final Order Date	Mass	Mating/Unmating Cycles	Minimum Order Quantity	Mounting Style	Transmission Rate	Number of Positions	Operating Temperature (Max.)	Operating Temperature (Min.)	Contact Plating	Packaging Type	Mounting Pitch	RoHS	Series Name	Pick-up Tape	Production Status	Plating Thickness	Performance Characteristics	Rated Current	Rated Voltage (AC)	Termination Plan Doc No
1		1	XG1-130S-SV	16+Gbps 0.5mm Pitch Stacking Connectors - XG1 - XG1-130S-SV - CL0624-0001-2-00	No	Non-ZIF	150	5,95	41,8	7,2	Board-to-Board	Receptacle		Straight	20	Yes	0,5	No	41	Yes	Beige	CL0624-0001-2-00	20,30,32,33,38,40,41	No	No			1,28	20	1000	SMT	16	100	85	-55	Gold	Reel	0,5	Handled	XG1	No		0,2	Ethernet,Fiber channel,Infiniband,SAS,SATA,PCIe	0,3	50
2	No CAD available	12	XG1-130S-SV(03)	16+Gbps 0.5mm Pitch Stacking Connectors - XG1 - XG1-130S-SV(03) - CL0624-0001-2-03	No	Non-ZIF	150	5,95	41,8	7,2	Board-to-Board	Receptacle		Straight	20	Yes	0,5	No	41	Yes	Beige	CL0624-0001-2-03	20,30,32,33,38,40,41	No	No		30/09/2023 00:00	1,28	20	1000	SMT	16	100	85	-55	Gold	Reel	0,5	Handled	XG1	No	01/10/2024 00:00	0,76	Ethernet,Fiber channel,Infiniband,SAS,SATA,PCIe	0,3	50	2021-19
3	No CAD available	17	XG1-130S-SV(05)	16+Gbps 0.5mm Pitch Stacking Connectors - XG1 - XG1-130S-SV(05) - CL0624-0001-2-05	No	Non-ZIF	150	5,95	41,8	7,2	Board-to-Board	Receptacle		Straight	20	Yes	0,5	No	41	Yes	Beige	CL0624-0001-2-05	20,30,32,33,38,40,41	No	No		30/09/2023 00:00	1,3	20	500	SMT	16	100	85	-55	Gold	Reel	0,5	Handled	XG1	Yes	01/10/2024 00:00	0,76	Ethernet,Fiber channel,Infiniband,SAS,SATA,PCIe	0,3	50	2021-19
4	No CAD available	18	XG1-130S-SV(07)	16+Gbps 0.5mm Pitch Stacking Connectors - XG1 - XG1-130S-SV(07) - CL0624-0001-2-07	No	Non-ZIF	150	5,95	41,8	7,2	Board-to-Board	Receptacle		Straight	20	Yes	0,5	No	41	Yes	Beige	CL0624-0001-2-07	20,30,32,33,38,40,41	No	No		30/09/2023 00:00	1,28	20	500	SMT	16	100	85	-55	Gold	Reel	0,5	Handled	XG1	No	01/10/2024 00:00	0,76	Ethernet,Fiber channel,Infiniband,SAS,SATA,PCIe	0,3	50	2021-19
5	No CAD available	20	XG1-260S-SV(03)	16+Gbps 0.5mm Pitch Stacking Connectors - XG1 - XG1-260S-SV(03) - CL0624-0002-5-03	No	Non-ZIF	150	5,95	79,8	7,2	Board-to-Board	Receptacle		Straight	20	Yes	0,5	No	41	Yes	Beige	CL0624-0002-5-03	20,30,32,33,38,40,41	No	No		30/09/2023 00:00	2,41	20	108	SMT	16	200	85	-55	Gold	Bag	0,5	Handled	XG1	No	01/10/2024 00:00	0,76	Ethernet,Fiber channel,Infiniband,SAS,SATA,PCIe	0,3	50	2021-19
6	No CAD available	21	XG1-130P/30-38H	16+Gbps 0.5mm Pitch Stacking Connectors - XG1 - XG1-130P/30-38H - CL0624-0603-5-00	No	Non-ZIF	150	34,85	41,8	6,2	Board-to-Board	Interposer		Straight	38		0,5	No	44	No	Beige & Black	CL0624-0603-5-00	38,40,41,42,43,44	No	No		30/09/2023 00:00	8,87	20	36		16	100	85	-55	Gold	Bag	0,5	Handled	XG1		01/10/2024 00:00	0,2	Ethernet,Fiber channel,Infiniband,SAS,SATA,PCIe	0,3	50	2021-19
7	No CAD available	22	XG1-260P/D06-30H(03)	16+Gbps 0.5mm Pitch Stacking Connectors - XG1 - XG1-260P/D06-30H(03) - CL0624-0619-5-03	No	Non-ZIF	150	26,85	79,8	6,2	Board-to-Board	Interposer		Straight	30		0,5	No	36	No	Beige & Black	CL0624-0619-5-03	30,32,33,34,35,36	No	No		30/09/2023 00:00	12,8	20	21		16	200	85	-55	Gold	Bag	0,5	Handled	XG1		01/10/2024 00:00	0,76	Ethernet,Fiber channel,Infiniband,SAS,SATA,PCIe	0,3	50	2021-19
8	No CAD available	23	XG1-78P/Q01-30H	16+Gbps 0.5mm Pitch Stacking Connectors - XG1 - XG1-78P/Q01-30H - CL0624-0620-4-00	No	Non-ZIF	150	26,85	27,8	6,2	Board-to-Board	Interposer		Straight	30		0,5	No	36	No	Beige & Black	CL0624-0620-4-00	30,32,33,34,35,36	No	No			1111	20	1		16	60	85	-55	Gold	Bag	0,5	Handled	XG1			0,2	Ethernet,Fiber channel,Infiniband,SAS,SATA,PCIe	0,3	50
9		2	XG1-78P/Q01-30H(03)	16+Gbps 0.5mm Pitch Stacking Connectors - XG1 - XG1-78P/Q01-30H(03) - CL0624-0620-4-03	No	Non-ZIF	150	26,85	27,8	6,2	Board-to-Board	Interposer		Straight	30		0,5	No	36	No	Beige & Black	CL0624-0620-4-03	30,32,33,34,35,36	No	No			4,33	20	250		16	60	85	-55	Gold	Bag	0,5	Handled	XG1			0,76	Ethernet,Fiber channel,Infiniband,SAS,SATA,PCIe	0,3	50
10	No CAD available	3	XG1-130P/Q01-30H(03)	16+Gbps 0.5mm Pitch Stacking Connectors - XG1 - XG1-130P/Q01-30H(03) - CL0624-0623-2-03	No	Non-ZIF	150	26,85	41,8	6,2	Board-to-Board	Interposer		Straight	30		0,5	No	36	No	Beige & Black	CL0624-0623-2-03	30,32,33,34,35,36	No	No		30/09/2023 00:00	6,61	20	500		16	100	85	-55	Gold	Bag	0,5	Handled	XG1		01/10/2024 00:00	0,76	Ethernet,Fiber channel,Infiniband,SAS,SATA,PCIe	0,3	50	2021-19
11	No CAD available	4	XG1-GP-20H	16+Gbps 0.5mm Pitch Stacking Connectors - XG1 - XG1-GP-20H - CL0624-0101-7-00	No	Non-ZIF		19,7	5,9	5	Board-to-Board	Others	Guide Pin		20				20	Yes		CL0624-0101-7-00	20	No		Screw	30/09/2023 00:00	1,69		200							Pack		Handled	XG1		01/10/2024 00:00					2021-19
12		6	XG1-260P/60-20H-SV	16+Gbps 0.5mm Pitch Stacking Connectors - XG1 - XG1-260P/60-20H-SV - CL0624-0201-1-00	No	Non-ZIF	150	18,95	79,8	7,2	Board-to-Board	Plug		Straight	20	Yes	0,5	No	23	Yes	Black	CL0624-0201-1-00	20,22,23	No	No			11,2	20	36	SMT	16	200	85	-55	Gold	Bag	0,5	Handled	XG1	Yes		0,2	Ethernet,Fiber channel,Infiniband,SAS,SATA,PCIe	0,3	50
13	No CAD available	7	XG1-130P/D01-20H-SV(03)	16+Gbps 0.5mm Pitch Stacking Connectors - XG1 - XG1-130P/D01-20H-SV(03) - CL0624-0202-4-03	No	Non-ZIF	150	18,95	41,8	7,2	Board-to-Board	Plug		Straight	20	Yes	0,5	No	23	Yes	Black	CL0624-0202-4-03	20,22,23	No	No		30/09/2023 00:00	5,79	20	72	SMT	16	100	85	-55	Gold	Bag	0,5	Handled	XG1	Yes	01/10/2024 00:00	0,76	Ethernet,Fiber channel,Infiniband,SAS,SATA,PCIe	0,3	50	2021-19
14		8	XG1-130P/Q01-20H-SV	16+Gbps 0.5mm Pitch Stacking Connectors - XG1 - XG1-130P/Q01-20H-SV - CL0624-0226-2-00	No	Non-ZIF	150	18,95	41,8	7,2	Board-to-Board	Plug		Straight	20	Yes	0,5	No	23	Yes	Black	CL0624-0226-2-00	20,22,23	No	No			5,92	20	40	SMT	16	100	85	-55	Gold	Bag	0,5	Handled	XG1	Yes		0,2	Ethernet,Fiber channel,Infiniband,SAS,SATA,PCIe	0,3	50
15	No CAD available	9	XG1-130P/30-30H	16+Gbps 0.5mm Pitch Stacking Connectors - XG1 - XG1-130P/30-30H - CL0624-0600-7-00	No	Non-ZIF	150	26,85	41,8	6,2	Board-to-Board	Interposer		Straight	30		0,5	No	36	No	Beige & Black	CL0624-0600-7-00	30,32,33,34,35,36	No	No		30/09/2023 00:00	6,61	20	42		16	100	85	-55	Gold	Bag	0,5	Handled	XG1		01/10/2024 00:00	0,2	Ethernet,Fiber channel,Infiniband,SAS,SATA,PCIe	0,3	50	2021-19
16	No CAD available	10	XG1-78S-SV-2H	16+Gbps 0.5mm Pitch Stacking Connectors - XG1 - XG1-78S-SV-2H - CL0624-0008-1-00	No	Non-ZIF	150	7,95	27,8	7,2	Board-to-Board	Receptacle		Straight	22	Yes	0,5	No	43	Yes	Beige	CL0624-0008-1-00	22,32,34,35,40,42,43	No	No			0	20	500	SMT	16	60	85	-55	Gold	Reel	0,5	Handled	XG1	No		0,2	Ethernet,Fiber channel,Infiniband,SAS,SATA,PCIe	0,3	50
17		11	XG1-78S-SV-2H(03)	16+Gbps 0.5mm Pitch Stacking Connectors - XG1 - XG1-78S-SV-2H(03) - CL0624-0008-1-03	No	Non-ZIF	150	7,95	27,8	7,2	Board-to-Board	Receptacle		Straight	22	Yes	0,5	No	43	Yes	Beige	CL0624-0008-1-03	22,32,34,35,40,42,43	No	No			1,27	20	500	SMT	16	60	85	-55	Gold	Reel	0,5	Handled	XG1	No		0,76	Ethernet,Fiber channel,Infiniband,SAS,SATA,PCIe	0,3	50
18	No CAD available	13	XG1-78S-SV-3H	16+Gbps 0.5mm Pitch Stacking Connectors - XG1 - XG1-78S-SV-3H - CL0624-0009-4-00	No	Non-ZIF	150	8,95	27,8	7,2	Board-to-Board	Receptacle		Straight	23	Yes	0,5	No	44	Yes	Beige	CL0624-0009-4-00	23,33,35,36,41,43,44	No	No			0	20	500	SMT	16	60	85	-55	Gold	Reel	0,5	Handled	XG1	No		0,2	Ethernet,Fiber channel,Infiniband,SAS,SATA,PCIe	0,3	50
19		14	XG1-78S-SV-3H(03)	16+Gbps 0.5mm Pitch Stacking Connectors - XG1 - XG1-78S-SV-3H(03) - CL0624-0009-4-03	No	Non-ZIF	150	8,95	27,8	7,2	Board-to-Board	Receptacle		Straight	23	Yes	0,5	No	44	Yes	Beige	CL0624-0009-4-03	23,33,35,36,41,43,44	No	No			1,46	20	500	SMT	16	60	85	-55	Gold	Reel	0,5	Handled	XG1	No		0,76	Ethernet,Fiber channel,Infiniband,SAS,SATA,PCIe	0,3	50
20	No CAD available	15	XG1-130S-SV-2H(04)	16+Gbps 0.5mm Pitch Stacking Connectors - XG1 - XG1-130S-SV-2H(04) - CL0624-0010-3-04	No	Non-ZIF	150	7,95	41,8	7,2	Board-to-Board	Receptacle		Straight	22	Yes	0,5	No	43	Yes	Beige	CL0624-0010-3-04	22,32,34,35,40,42,43	No	No		30/09/2023 00:00	1,864	20	500	SMT	16	100	85	-55	Gold	Reel	0,5	Handled	XG1	Yes	01/10/2024 00:00	0,2	Ethernet,Fiber channel,Infiniband,SAS,SATA,PCIe	0,3	50	2021-19
21	No CAD available	16	XG1-GS	16+Gbps 0.5mm Pitch Stacking Connectors - XG1 - XG1-GS - CL0624-0100-4-00	No	Non-ZIF		11,5	22,9	11,4	Board-to-Board	Others	Guide Socket							No	Black	CL0624-0100-4-00		No		Latch-lock	30/09/2023 00:00	1,48		200							Pack		Handled	XG1		01/10/2024 00:00					2021-19
