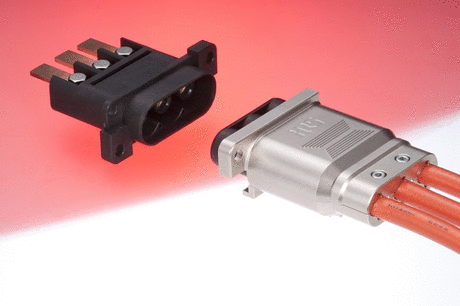

125A High-Current Waterproof (IP68/X9K) Connectors

Manufacturer	Hirose Electric Co., Ltd.
Description	125A High-Current Waterproof (IP68/X9K) Connectors - EV1 - EV1-PC-112(02) - CL0139-0004-9-02
Part Number	EV1-PC-112(02)
Wire Termination Method	Crimping
Cable Assembly	No
ZIF/Non-ZIF/LIF	Non-ZIF
Withstanding voltage
Connector Height
Connector Length
Connector Width
Cable Outer Diameter
Min. Wire Insulation Diameter	11,25
Max. Wire Insulation Diameter	11,75
Recommended Max. Wire Size (mm2)	26,66
Salt Spray Test Duration (Corrosion Resistance)
Recommended Min. Wire Size (mm2)	16,78
Connector Class	Circular Connector
Connector Type	Contact
Connector Orientation
Contact Gender	Male
Finish on Shell
Housing Color

HRS No.	CL0139-0004-9-02
Finger Protection
Metal Shields	No
Locking Style
Mass	24,7
Mating/Unmating Cycles	50
Minimum Order Quantity	1
Number of Positions
Operating Temperature (Max.)	125
Operating Temperature (Min.)	-40
Contact Plating	Silver
Packaging Type	Pack
Panel Mounting Style
RoHS	Handled
Series Name	EV1
Water Resistance
Key	No
Rated Current	125
Rated Voltage (AC)
Static Sensitive	No
Rated Voltage (DC)
Shell Material

CAD models

Request for quotation

Product selection

Index	CAD	Selector	Part Number	Description	Wire Termination Method	Cable Assembly	ZIF/Non-ZIF/LIF	Withstanding voltage	Connector Height	Connector Length	Connector Width	Cable Outer Diameter	Min. Wire Insulation Diameter	Max. Wire Insulation Diameter	Recommended Max. Wire Size (mm2)	Recommended Min. Wire Size (mm2)	Connector Class	Connector Type	Connector Orientation	Contact Gender	Finish on Shell	Housing Color	HRS No.	Finger Protection	Metal Shields	Locking Style	Mass	Mating/Unmating Cycles	Minimum Order Quantity	Number of Positions	Operating Temperature (Max.)	Operating Temperature (Min.)	Contact Plating	Packaging Type	RoHS	Series Name	Water Resistance	Key	Rated Current	Rated Voltage (AC)	Static Sensitive	Rated Voltage (DC)	Shell Material
1	No CAD available	5	EV1-PC-112(02)	125A High-Current Waterproof (IP68/X9K) Connectors - EV1 - EV1-PC-112(02) - CL0139-0004-9-02	Crimping	No	Non-ZIF						11,25	11,75	26,66	16,78	Circular Connector	Contact		Male			CL0139-0004-9-02		No		24,7	50	1		125	-40	Silver	Pack	Handled	EV1		No	125		No
2		7	EV1-62P-2PC	125A High-Current Waterproof (IP68/X9K) Connectors - EV1 - EV1-62P-2PC - CL0139-0007-7-00	Crimping	No	Non-ZIF	2000	40	92	104,1	11,5					Circular Connector	Plug	Straight	Male	Nickel	Black	CL0139-0007-7-00	Yes	Yes	Screw	214,3	50	1	2	125	-40		Bag	Handled	EV1	X9K	No	125	460	No	650	Metal
3	No CAD available	8	EV1-SC2-132(03)	125A High-Current Waterproof (IP68/X9K) Connectors - EV1 - EV1-SC2-132(03) - CL0139-0012-7-03	Crimping	No	Non-ZIF						10	13	42,42	26,66	Circular Connector	Contact		Female			CL0139-0012-7-03		No		37,2	50	4		125	-40	Silver	Pack	Handled	EV1		No	125
4	No CAD available	9	EV1-SC2-112(03)	125A High-Current Waterproof (IP68/X9K) Connectors - EV1 - EV1-SC2-112(03) - CL0139-0013-0-03	Crimping	No	Non-ZIF						11,25	11,75	26,66	16,78	Circular Connector	Contact		Female			CL0139-0013-0-03		No		31,6	50	4		125	-40	Silver	Pack	Handled	EV1		No	125
