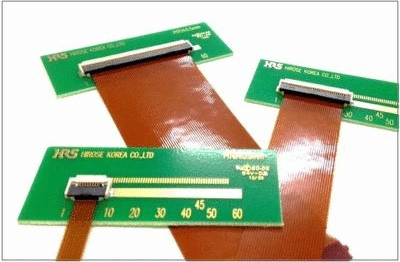

0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors

Manufacturer	Hirose Electric Co., Ltd.
Description	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-7S-0.5SH(800) - CL0480-0516-0-00
Part Number	TF31-7S-0.5SH(800)
Cable Assembly
ZIF/Non-ZIF/LIF	ZIF
Contact Orientation	Bottom
Connector Height	1,75
Connector Length	7,8
Connector Width	5,7
Ambient Humidity (Min.)
Contact Resistance	50
Recommended Wire Type	FPC,FFC
Connector Class	FPC/FFC
Connector Type	Receptacle
Actuator Position	Front
FFC/FPC Thickness	0,3
Contact Pitch	0,5
HRS No.	CL0480-0516-0-00
FPC/FFC Insertion Direction	Horizontal

Mass	0,083
Mating/Unmating Cycles	20
Number of Rows (Lead/PCB Side)	1
Minimum Order Quantity	3000
Number of Positions	7
Operating Temperature (Max.)	105
Operating Temperature (Min.)	-40
Contact Plating	Gold
Packaging Type	Reel
Mounting Pitch	0,5
Recommended FFC/FPC
RoHS	Handled
Series Name	TF31
Pick-up Tape	No
Plating Thickness	0,03
Rated Current	0,5
Rated Voltage (AC)	50
Rated Voltage (DC)	50
Solder Wicking Prevention

CAD models

Request for quotation

Product selection

Index	CAD	Selector	Part Number	Description	Cable Assembly	ZIF/Non-ZIF/LIF	Contact Orientation	Connector Height	Connector Length	Connector Width	Ambient Humidity (Min.)	Contact Resistance	Recommended Wire Type	Connector Class	Connector Type	Actuator Position	FFC/FPC Thickness	Contact Pitch	HRS No.	FPC/FFC Insertion Direction	Mass	Mating/Unmating Cycles	Number of Rows (Lead/PCB Side)	Minimum Order Quantity	Number of Positions	Operating Temperature (Max.)	Operating Temperature (Min.)	Contact Plating	Packaging Type	Mounting Pitch	Recommended FFC/FPC	RoHS	Series Name	Pick-up Tape	Plating Thickness	Rated Current	Rated Voltage (AC)	Rated Voltage (DC)	Solder Wicking Prevention
1	No CAD available	1	TF31-7S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-7S-0.5SH(800) - CL0480-0516-0-00		ZIF	Bottom	1,75	7,8	5,7		50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0516-0-00	Horizontal	0,083	20	1	3000	7	105	-40	Gold	Reel	0,5		Handled	TF31	No	0,03	0,5	50	50
2	No CAD available	12	TF31-7S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-7S-0.5SH(895) - CL0480-0516-0-95		ZIF	Bottom	1,75	7,8	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0516-0-95	Horizontal		20	1	500	7	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
3	No CAD available	23	TF31-25S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-25S-0.5SH(800) - CL0480-0358-0-00		ZIF	Bottom	2	16,8	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0358-0-00	Horizontal		20	1	3000	25	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
4	No CAD available	34	TF31-25S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-25S-0.5SH(895) - CL0480-0358-0-95		ZIF	Bottom	2	16,8	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0358-0-95	Horizontal		20	1	500	25	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
5	No CAD available	45	TF31-24S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-24S-0.5SH(800) - CL0480-0251-0-00	No	ZIF	Bottom	2	16,3	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0251-0-00	Horizontal	0,192	20	1	3000	24	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
6	No CAD available	56	TF31-24S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-24S-0.5SH(895) - CL0480-0251-0-95	No	ZIF	Bottom	2	16,3	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0251-0-95	Horizontal	0,192	20	1	500	24	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
7	No CAD available	64	TF31-26S-1SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-26S-1SH(800) - CL0480-0252-0-00	No	ZIF	Bottom	2	30,8	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	1	CL0480-0252-0-00	Horizontal	0,316	20	1	3000	26	105	-40	Gold	Reel	1	FPC/FFC	Handled	TF31			0,5	50	50	Yes
8	No CAD available	65	TF31-4S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-4S-0.5SH(895) - CL0480-0235-0-95	No	ZIF	Bottom	1,75	6,3	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0235-0-95	Horizontal	0,065	20	1	500	4	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
9	No CAD available	66	TF31-4S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-4S-0.5SH(800) - CL0480-0235-5-00	No	ZIF	Bottom	1,75	6,3	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0235-5-00	Horizontal	0,065	20	1	3000	4	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
10	No CAD available	2	TF31-8S-1SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-8S-1SH(800) - CL0480-0211-7-00	No	ZIF	Bottom	1,75	12,8	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	1	CL0480-0211-7-00	Horizontal	0,124	20	1	3000	8	105	-40	Gold	Reel	1	FPC/FFC	Handled	TF31			0,5	50	50	Yes
11	No CAD available	3	TF31-10S-1SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-10S-1SH(800) - CL0480-0212-0-00	No	ZIF	Bottom	2	14,8	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	1	CL0480-0212-0-00	Horizontal	0,152	20	1	3000	10	105	-40	Gold	Reel	1	FPC/FFC	Handled	TF31			0,5	50	50	Yes
12	No CAD available	4	TF31-40(20)SB-1SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-40(20)SB-1SH(800) - CL0480-0213-2-00	No	ZIF	Bottom	2	24,3	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	1	CL0480-0213-2-00	Horizontal	0,247	20	1	3000	20	105	-40	Gold	Reel	1	FPC/FFC	Handled	TF31			0,5	50	50	Yes
13	No CAD available	5	TF31-35S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-35S-0.5SH(800) - CL0480-0261-0-00	No	ZIF	Bottom	2	21,8	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0261-0-00	Horizontal	0,26	20	1	3000	35	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
14	No CAD available	6	TF31-35S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-35S-0.5SH(895) - CL0480-0261-0-95	No	ZIF	Bottom	2	21,8	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0261-0-95	Horizontal	0,26	20	1	500	35	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
15	No CAD available	7	TF31-10S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-10S-0.5SH(895) - CL0480-0130-0-95	No	ZIF	Bottom	1,75	9,3	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0130-0-95	Horizontal	0,099	20	1	500	10	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
16	No CAD available	8	TF31-10S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-10S-0.5SH(800) - CL0480-0130-7-00	No	ZIF	Bottom	1,75	9,3	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0130-7-00	Horizontal	0,099	20	1	3000	10	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
17	No CAD available	9	TF31-12S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-12S-0.5SH(800) - CL0480-0131-0-00	No	ZIF	Bottom	1,75	10,3	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0131-0-00	Horizontal	0,111	20	1	3000	12	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
18	No CAD available	10	TF31-12S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-12S-0.5SH(895) - CL0480-0131-0-95	No	ZIF	Bottom	1,75	10,3	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0131-0-95	Horizontal	0,111	20	1	500	12	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
19	No CAD available	11	TF31-20S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-20S-0.5SH(895) - CL0480-0132-0-95	No	ZIF	Bottom	1,75	14,3	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0132-0-95	Horizontal	0,16	20	1	500	20	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
20	No CAD available	13	TF31-20S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-20S-0.5SH(800) - CL0480-0132-2-00	No	ZIF	Bottom	1,75	14,3	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0132-2-00	Horizontal	0,16	20	1	3000	20	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
21	No CAD available	14	TF31-40S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-40S-0.5SH(895) - CL0480-0133-0-95	No	ZIF	Bottom	2	24,3	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0133-0-95	Horizontal	0,287	20	1	500	40	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
22	No CAD available	15	TF31-40S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-40S-0.5SH(800) - CL0480-0133-5-00	No	ZIF	Bottom	2	24,3	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0133-5-00	Horizontal	0,287	20	1	3000	40	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
23	No CAD available	16	TF31-45S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-45S-0.5SH(895) - CL0480-0134-0-95	No	ZIF	Bottom	2	26,8	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0134-0-95	Horizontal	0,32	20	1	500	45	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
24	No CAD available	17	TF31-45S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-45S-0.5SH(800) - CL0480-0134-8-00	No	ZIF	Bottom	2	26,8	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0134-8-00	Horizontal	0,32	20	1	3000	45	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
25	No CAD available	18	TF31-50S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-50S-0.5SH(800) - CL0480-0135-0-00	No	ZIF	Bottom	2	29,3	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0135-0-00	Horizontal	0,35	20	1	3000	50	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
26	No CAD available	19	TF31-50S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-50S-0.5SH(895) - CL0480-0135-0-95	No	ZIF	Bottom	2	30,3	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0135-0-95	Horizontal	0,35	20	1	500	50	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
27	No CAD available	20	TF31-60S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-60S-0.5SH(895) - CL0480-0136-0-95	No	ZIF	Bottom	2	34,3	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0136-0-95	Horizontal	0,422	20	1	500	60	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
28	No CAD available	21	TF31-60S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-60S-0.5SH(800) - CL0480-0136-3-00	No	ZIF	Bottom	2	34,3	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0136-3-00	Horizontal	0,422	20	1	3000	60	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
29	No CAD available	22	TF31-22S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-22S-0.5SH(895) - CL0480-0143-0-95	No	ZIF	Bottom	2	15,3	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0143-0-95	Horizontal	0,18	20	1	500	22	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
30	No CAD available	24	TF31-22S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-22S-0.5SH(800) - CL0480-0143-9-00	No	ZIF	Bottom	2	15,3	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0143-9-00	Horizontal	0,18	20	1	3000	22	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
31	No CAD available	25	TF31-6S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-6S-0.5SH(895) - CL0480-0154-0-95	No	ZIF	Bottom	1,75	7,3	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0154-0-95	Horizontal	0,078	20	1	500	6	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
32	No CAD available	26	TF31-6S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-6S-0.5SH(800) - CL0480-0154-5-00	No	ZIF	Bottom	1,75	7,3	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0154-5-00	Horizontal	0,078	20	1	3000	6	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
33	No CAD available	27	TF31-14S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-14S-0.5SH(800) - CL0480-0155-8-00	No	ZIF	Bottom	1,75	11,3	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0155-8-00	Horizontal	0,126	20	1	3000	14	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
34	No CAD available	28	TF31-14S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-14S-0.5SH(895) - CL0480-0155-8-95	No	ZIF	Bottom	1,75	11,3	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0155-8-95	Horizontal	0,126	20	1	500	14	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
35	No CAD available	29	TF31-28S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-28S-0.5SH(800) - CL0480-0156-0-00	No	ZIF	Bottom	2	18,3	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0156-0-00	Horizontal	0,22	20	1	3000	28	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
36	No CAD available	30	TF31-28S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-28S-0.5SH(895) - CL0480-0156-0-95	No	ZIF	Bottom	2	18,3	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0156-0-95	Horizontal	0,22	20	1	500	28	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
37	No CAD available	31	TF31-32S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-32S-0.5SH(895) - CL0480-0157-0-95	No	ZIF	Bottom	2	20,3	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0157-0-95	Horizontal	0,243	20	1	500	32	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
38	No CAD available	32	TF31-32S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-32S-0.5SH(800) - CL0480-0157-3-00	No	ZIF	Bottom	2	20,3	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0157-3-00	Horizontal	0,243	20	1	3000	32	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
39	No CAD available	33	TF31-18S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-18S-0.5SH(800) - CL0480-0161-0-00	No	ZIF	Bottom	1,75	13,3	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0161-0-00	Horizontal	0,148	20	1	3000	18	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
40	No CAD available	35	TF31-18S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-18S-0.5SH(895) - CL0480-0161-0-95	No	ZIF	Bottom	1,75	13,3	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0161-0-95	Horizontal	0,148	20	1	500	18	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
41	No CAD available	36	TF31-26S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-26S-0.5SH(895) - CL0480-0162-0-95	No	ZIF	Bottom	2	17,3	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0162-0-95	Horizontal	0,206	20	1	500	26	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
42	No CAD available	37	TF31-26S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-26S-0.5SH(800) - CL0480-0162-3-00	No	ZIF	Bottom	2	17,3	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0162-3-00	Horizontal	0,206	20	1	3000	26	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
43	No CAD available	38	TF31-36S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-36S-0.5SH(895) - CL0480-0163-0-95	No	ZIF	Bottom	2	22,3	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0163-0-95	Horizontal	0,267	20	1	500	36	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
44	No CAD available	39	TF31-36S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-36S-0.5SH(800) - CL0480-0163-6-00	No	ZIF	Bottom	2	22,3	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0163-6-00	Horizontal	0,267	20	1	3000	36	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
45	No CAD available	40	TF31-6S-1SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-6S-1SH(800) - CL0480-0168-0-00	No	ZIF	Bottom	1,75	10,8	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	1	CL0480-0168-0-00	Horizontal	0,105	20	1	3000	6	105	-40	Gold	Reel	1	FPC/FFC	Handled	TF31			0,5	50	50	Yes
46	No CAD available	42	TF31-13S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-13S-0.5SH(800) - CL0480-0177-0-00	No	ZIF	Bottom	1,75	10,8	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0177-0-00	Horizontal	0,119	20	1	3000	13	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
47	No CAD available	43	TF31-13S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-13S-0.5SH(895) - CL0480-0177-0-95	No	ZIF	Bottom	1,75	10,8	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0177-0-95	Horizontal	0,119	20	1	500	13	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
48	No CAD available	44	TF31-16S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-16S-0.5SH(800) - CL0480-0178-3-00	No	ZIF	Bottom	1,75	12,3	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0178-3-00	Horizontal	0,135	20	1	3000	16	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
49	No CAD available	46	TF31-16S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-16S-0.5SH(895) - CL0480-0178-3-95	No	ZIF	Bottom	1,75	12,3	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0178-3-95	Horizontal	0,135	20	1	500	16	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
50	No CAD available	47	TF31-30S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-30S-0.5SH(895) - CL0480-0179-0-95	No	ZIF	Bottom	2	19,3	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0179-0-95	Horizontal	0,231	20	1	500	30	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
51	No CAD available	48	TF31-30S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-30S-0.5SH(800) - CL0480-0179-6-00	No	ZIF	Bottom	2	19,3	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0179-6-00	Horizontal	0,231	20	1	3000	30	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
52	No CAD available	49	TF31-60(30)SB-1SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-60(30)SB-1SH(800) - CL0480-0180-5-00	No	ZIF	Bottom	2	34,3	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	1	CL0480-0180-5-00	Horizontal	0,362	20	1	3000	30	105	-40	Gold	Reel	1	FPC/FFC	Handled	TF31			0,5	50	50	Yes
53	No CAD available	50	TF31-8S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-8S-0.5SH(895) - CL0480-0184-0-95	No	ZIF	Bottom	1,75	8,3	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0184-0-95	Horizontal	0,088	20	1	500	8	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
54	No CAD available	51	TF31-8S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-8S-0.5SH(800) - CL0480-0184-6-00	No	ZIF	Bottom	1,75	8,3	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0184-6-00	Horizontal	0,088	20	1	3000	8	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
55	No CAD available	52	TF31-17S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-17S-0.5SH(800) - CL0480-0185-9-00	No	ZIF	Bottom	1,75	12,8	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0185-9-00	Horizontal	0,142	20	1	3000	17	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
56	No CAD available	53	TF31-17S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-17S-0.5SH(895) - CL0480-0185-9-95	No	ZIF	Bottom	1,75	12,8	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0185-9-95	Horizontal	0,142	20	1	500	17	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
57	No CAD available	54	TF31-21S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-21S-0.5SH(895) - CL0480-0186-0-95	No	ZIF	Bottom	2	14,8	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0186-0-95	Horizontal	0,174	20	1	500	21	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
58	No CAD available	55	TF31-21S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-21S-0.5SH(800) - CL0480-0186-1-00	No	ZIF	Bottom	2	14,8	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0186-1-00	Horizontal	0,174	20	1	3000	21	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
59	No CAD available	57	TF31-55S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-55S-0.5SH(895) - CL0480-0187-0-95	No	ZIF	Bottom	2	31,8	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0187-0-95	Horizontal	0,387	20	1	500	55	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
60	No CAD available	58	TF31-55S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-55S-0.5SH(800) - CL0480-0187-4-00	No	ZIF	Bottom	2	31,8	5,7	0	50	FPC,FFC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0187-4-00	Horizontal	0,387	20	1	3000	55	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31			0,5	50	50	Yes
61	No CAD available	59	TF31-53S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-53S-0.5SH(800) - CL0480-0762-0-00		ZIF	Bottom	2	30,8	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0762-0-00	Horizontal		20	1	3000	53	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
62	No CAD available	60	TF31-53S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-53S-0.5SH(895) - CL0480-0762-0-95		ZIF	Bottom	2	30,8	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0762-0-95	Horizontal		20	1	500	53	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
63	No CAD available	61	TF31-54S-0.5SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-54S-0.5SH(800) - CL0480-0756-0-00		ZIF	Bottom	2	31,3	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0756-0-00	Horizontal		20	1	3000	54	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
64	No CAD available	62	TF31-54S-0.5SH(895)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-54S-0.5SH(895) - CL0480-0756-0-95		ZIF	Bottom	2	31,3	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	0,5	CL0480-0756-0-95	Horizontal		20	1	500	54	105	-40	Gold	Reel	0,5	FPC/FFC	Handled	TF31	No	0,03	0,5	50	50	Yes
65	No CAD available	63	TF31-32(16)SB-1SH(800)	0.5mm and 1.0mm Pitch, 2.0mm Height FFC/FPC Connectors - TF31 - TF31-32(16)SB-1SH(800) - CL0480-0848-0-00		ZIF	Bottom	2	20,3	5,7		50	FPC	FPC/FFC	Receptacle	Front	0,3	1	CL0480-0848-0-00	Horizontal	0,211	20	1	3000	16	105	-40	Gold	Reel	1	FPC/FFC		TF31	No	0,03	0,5	50	50	Yes
