KGF Ball screw flange nuts

Manufacturer	GROB
Description	KGF Ball screw flange nut
Part Number	KGF-D-16x10-Rh

CAD models

Request for quotation

Product selection

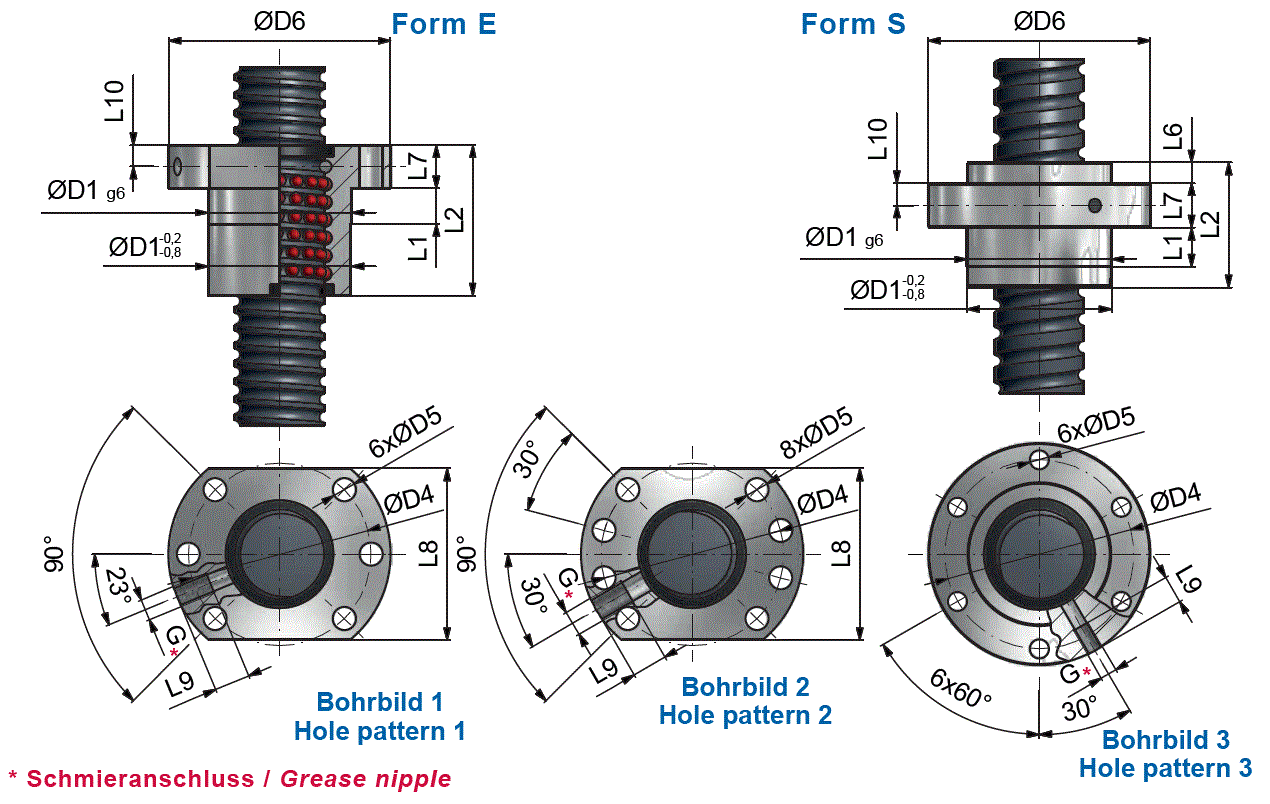

Index	Selector	Thread	Designation of parts	Note	Form	Hole pattern	ØD1	ØD4	ØD5	ØD6	L1	L2	L6	L7	L8	L9	L10	G
1	1	KGT 16x10	KGF-D-16x10-Rh	Other versions and designs upon request	E	1	28	38	5.5	48	10	42		10	40	10	5	M6
2	12	KGT 16x5	KGF-D-16x5-Rh	Other versions and designs upon request	E	1	28	38	5.5	48	10	55		10	40	10	5	M6
3	22	KGT 20x5	KGF-D-20x5-Rh	Other versions and designs upon request	E	1	36	47	6.6	58	10	42		10	44	10	5	M6
4	23	KGT 25x10	KGF-D-25x10-Rh	Other versions and designs upon request	E	1	40	51	6.6	62	16	55		10	48	10	5	M6
5	24	KGT 25x25	KGF-D-25x25-Rh	Other versions and designs upon request	S	1	40	51	6.6	62	9	35	8	10		8	5	M6
6	25	KGT 25x50	KGF-D-25x50-Rh	Other versions and designs upon request	S	1	40	51	6.6	62	10	58	10	10	48	8	5	M6
7	26	KGT 32x10	KGF-D-32x10-Rh	Other versions and designs upon request	E	1	50	65	9	80	10	55		12	62	10	6	M6
8	27	KGT 32x20	KGF-D-32x20-Rh	Other versions and designs upon request	E	1	53	65	9	80	16	69		12	62	10	6	M8x1
9	28	KGT 32x5	KGF-D-32x5-Rh	Other versions and designs upon request	E	1	53	65	9	80	16	80		12	62	10	6	M6
10	2	KGT 40x10	KGF-D-40x10-Rh	Other versions and designs upon request	E	2	63	78	9	93	10	57		14	70	10	7	M6
11	3	KGT 40x20	KGF-D-40x20-Rh	Other versions and designs upon request	E	2	63	78	9	93	16	71		14	70	10	7	M8x1
12	4	KGT 40x40	KGF-D-40x40-Rh	Other versions and designs upon request	E	2	63	78	9	93	16	80		14	70	10	7	M8x1
13	5	KGT 40x5	KGF-D-40x5-Rh	Other versions and designs upon request	S	2	63	78	9	93	16	85	7.5	14		10	7	M8x1
14	6	KGT 50x10	KGF-D-50x10-Rh	Other versions and designs upon request	E	2	75	93	11	110	16	95		16	85	10	8	M8x1
15	7	KGT 50x20	KGF-D-50x20-Rh	Other versions and designs upon request	E	2	85	103	11	125	22	95		18	95	10	9	M8x1
16	8	KGT 63x10	KGF-D-63x10-Rh	Other versions and designs upon request	E	2	90	108	11	125	16	97		18	95	10	9	M8x1
17	9	KGT 16x5	KGF-N-16x5-Rh	Other versions and designs upon request	E	3	28	38	5.5	48	8	44		12		8	6	M6
18	10	KGT 20x20	KGF-N-20x20-Rh	Other versions and designs upon request	E	3	32	45	7	55	8	44		12		8	6	M6
19	11	KGT 20x50	KGF-N-20x50-Rh	Other versions and designs upon request	S	3	35	50	7	62	4	30	8	10		8	5	M6
20	13	KGT 20x5	KGF-N-20x5-Rh	Other versions and designs upon request	S	3	35	50	7	62	10	56	9	10		8	5	M6
21	14	KGT 25x5	KGF-N-25x5-Rh	Other versions and designs upon request	E	3	38	50	7	62	8	46		14		8	7	M6
22	15	KGT 32x10	KGF-N-32x10-Rh	Other versions and designs upon request	E	3	45	58	7	70	10	59		16		8	8	M6
23	16	KGT 32x40	KGF-N-32x40-Rh	Other versions and designs upon request	E	3	53	68	7	80	10	73		16		8	8	M8x1
24	17	KGT 32x5	KGF-N-32x5-Rh	Other versions and designs upon request	S	3	53	68	7	80	14	45	7.5	16		10	8	M6
25	18	KGT 40x10	KGF-N-40x10-Rh	Other versions and designs upon request	E	3	53	68	7	80	10	59		16		8	8	M6
26	19	KGT 40x5	KGF-N-40x5-Rh	Other versions and designs upon request	E	3	63	78	9	95	10	73		16		8	8	M8x1
27	20	KGT 50x10	KGF-N-50x10-Rh	Other versions and designs upon request	E	3	72	90	11	110	10	97		18		8	9	M8x1
28	21	KGT 63x10	KGF-N-63x10-Rh	Other versions and designs upon request	E	3	85	105	11	125	10	99		20		8	10	M8x1
