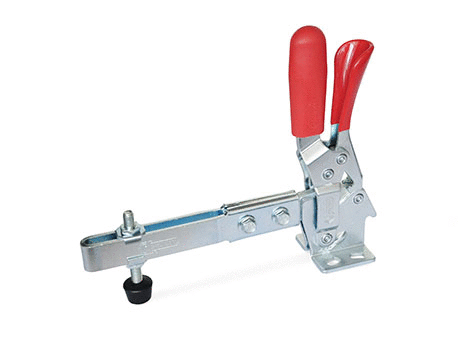

GN 810.3 Toggle Clamps, steel, operating lever vertical, with lock mechanism, with horizontal mounting base, with extended camping arm

Manufacturer	GANTER
Description	Toggle Clamps, steel, operating lever vertical, with lock mechanism, with horizontal mounting base, with extended camping arm
Part Number	810.3-130-UL
EAN	4045525536784
ECLASS 9.1	21041717

Customs fee number	82057000
RoHs	Yes
Weight	0.375 kg
Type	UL - Clamping arm extended, with slotted hole and with two flanged washers
Material	C 10 - Case-hardened steel C10

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Size	FH in N Holding capacity	a ≈	b1	b2	b3	d1	d2 ≈	h1 ≈	h2	h3	h4	h5 max.	l1 ≈	l2 ≈	l3	m1	m2	m3	m4	r ≈	s	w Adjustable range	Type	Material
1	1	810.3-130-UL	130	500	67.5	35	42	6.3	M 6	5.5	142	28	16	25.5	11.3	164	121	55	12.5	19	27	29	158	2.5	17.5	UL - Clamping arm extended, with slotted hole and with two flanged washers	C 10 - Case-hardened steel C10
2	2	810.3-130-ULC	130	500	67.5	35	42	6.3	M 6	5.5	142	28	16	25.5	11.3	164	121	55	12.5	19	27	29	158	2.5	17.5	ULC - Clamping arm extended, with slotted hole, two flanged washers and clamping screw GN 708.1	C 10 - Case-hardened steel C10
3	3	810.3-230-UL	230	1000	71.5	43	45	8.2	M 8	6.5	168	33.5	18	30	9.5	198	145.5	68	19.5	19.5	32	32	191	3	20	UL - Clamping arm extended, with slotted hole and with two flanged washers	C 10 - Case-hardened steel C10
4	4	810.3-230-ULC	230	1000	71.5	43	45	8.2	M 8	6.5	168	33.5	18	30	9.5	198	145.5	68	19.5	19.5	32	32	191	3	20	ULC - Clamping arm extended, with slotted hole, two flanged washers and clamping screw GN 708.1	C 10 - Case-hardened steel C10

Product Description

Toggle clamps GN 810.3 are latched in both end positions. In the clamped position, this prevents unintentional opening or opening caused by vibrations and in the open position, it prevents self-closing of the toggle clamp, such as due to an extended clamping arm. The latching can be disabled with a single hand to allow for opening / closing.

They work according to the toggle principle lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.

Toggle clamps in the U-bar version with two flanged washers type UL can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type ULC.
