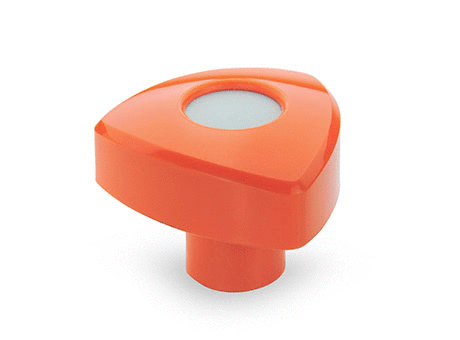

GN 5339 Triangular Knobs, Plastic

Manufacturer	GANTER
Description	Triangular Knobs, Plastic
Part Number	5339-32-M5-SW
EAN	4045525282988
ECLASS 9.1	23010102

Customs fee number	39263000
RoHs	Yes
Weight	0.007 kg
Color	SW - Black, RAL 9005
Material	PA - Plastic

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	d1	d2	d3	h1	h2	t	Color	Material
1	1	5339-32-M5-SW	32	M 5	14	26	16	10	SW - Black, RAL 9005	PA - Plastic
2	9	5339-32-M5-OR	32	M 5	14	26	16	10	OR - Orange, RAL 2004	PA - Plastic
3	10	5339-32-M6-SW	32	M 6	14	26	16	12	SW - Black, RAL 9005	PA - Plastic
4	11	5339-32-M6-OR	32	M 6	14	26	16	12	OR - Orange, RAL 2004	PA - Plastic
5	12	5339-40-M6-SW	40	M 6	16	30	17	12	SW - Black, RAL 9005	PA - Plastic
6	13	5339-40-M6-OR	40	M 6	16	30	17	12	OR - Orange, RAL 2004	PA - Plastic
7	14	5339-40-M8-SW	40	M 8	16	30	17	14	SW - Black, RAL 9005	PA - Plastic
8	15	5339-40-M8-OR	40	M 8	16	30	17	14	OR - Orange, RAL 2004	PA - Plastic
9	16	5339-50-M8-SW	50	M 8	19	35	19	14	SW - Black, RAL 9005	PA - Plastic
10	2	5339-50-M8-OR	50	M 8	19	35	19	14	OR - Orange, RAL 2004	PA - Plastic
11	3	5339-50-M10-SW	50	M 10	19	35	19	16	SW - Black, RAL 9005	PA - Plastic
12	4	5339-50-M10-OR	50	M 10	19	35	19	16	OR - Orange, RAL 2004	PA - Plastic
13	5	5339-60-M10-SW	60	M 10	22	41	22	16	SW - Black, RAL 9005	PA - Plastic
14	6	5339-60-M10-OR	60	M 10	22	41	22	16	OR - Orange, RAL 2004	PA - Plastic
15	7	5339-60-M12-SW	60	M 12	22	41	22	18	SW - Black, RAL 9005	PA - Plastic
16	8	5339-60-M12-OR	60	M 12	22	41	22	18	OR - Orange, RAL 2004	PA - Plastic

Product Description

Triangular knobs GN 5339 impress by their elegant shape and gleaming color.
