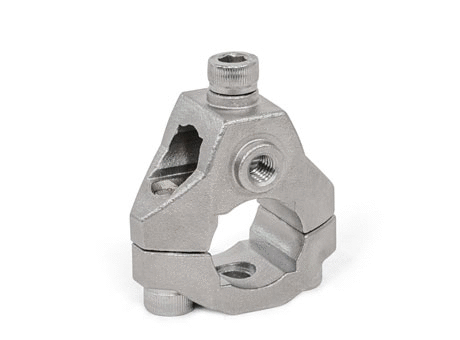

GN 131.4 Two-Way Connector Clamps, Stainless Steel, Split Assembly

Manufacturer	GANTER
Description	Two-Way Connector Clamps, Stainless Steel, Split Assembly
Part Number	131.4-B12-B12-2-NI
EAN	4063632134310
ECLASS 9.1	23369190

Customs fee number	73269098
RoHs	Yes
Weight	0.102 kg
Identification No.	2 - With 3 socket cap screws ISO 4762
Material	NI - Stainless steel

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	d1	d2	k	l1	l2	m	s1 Square	s2 Square	z1 Screw location	z2 Screw location	Identification No.	Material
1	1	131.4-B12-B12-2-NI	B 12	B 12	20	35.5	42	14	10	10	M6-8	M6-12	2 - With 3 socket cap screws ISO 4762	NI - Stainless steel
2	2	131.4-B12-B20-2-NI	B 12	B 20	20	44.5	42	17	10	16	M6-10	M6-18	2 - With 3 socket cap screws ISO 4762	NI - Stainless steel

Product Description

The clamping bores of the two-way connector clamps GN 131.4 are designed for typical construction tubes. The square sections s1 and s2 also allow bars or tubes with a square cross-section to be clamped.

Clamping at screw point z1 is performed radially on the surface of the profiles used. At the screw location z2, socket cap screws reduce the bore cross-section for clamping. The split clamping point z2 permits subsequent insertion of the clamp connector into an existing structure and facilitates assembly when axial sliding is not possible, e.g., due to tight bending radii.
