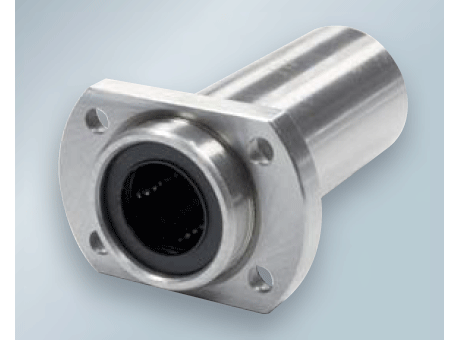

LMT-LE - Standard linear bearing

Manufacturer	FLI
Description	Standard linear bearing LMT12LUUE
Part number	LMT12LUUE
Dynamic load	813 N
Static load	1570 N
Shaft diameter	12 mm
Outer diameter	21 mm
Mass	102 g

CAD models

Request for quotation

Product selection

Index	Selector	Part number	Number of ball circuits	dr (mm)	dr Tol. (µm)	D (mm)	D Tol. (µm)	L +/-0.3 (mm)	f (mm)	Df (mm)	W (mm)	t (mm)	A (mm)	F (mm)	X x Y x Z (mm)	Eccentricity (µm)	Basic load - Dyn. C (N)	Basic load - Stat. Co (N)	Static moment Mo (N.m)	Weight (g)
1	3	LMT 12 LE	4	12	0/-10	21	0/-16	57	6	42	27	6	32	-	4.5 x 7.5 x 4.1	15	813	1570	10.9	102
2	5	LMT 16 LE	5	16	0/-10	28	0/-16	70	6	48	34	6	31	22	4.5 x 7.5 x 4.1	15	1230	2350	19.7	182
3	6	LMT 20 LE	5	20	0/-12	32	0/-19	80	8	54	38	8	36	24	5.5 x 9 x 5.1	20	1400	2740	26.8	247
4	7	LMT 25 LE	6	25	0/-12	40	0/-19	112	8	62	46	8	40	32	5.5 x 9 x 5.1	20	1560	3140	43.4	525
5	8	LMT 30 LE	6	30	0/-12	45	0/-19	123	10	74	51	10	49	35	6.6 x 11 x 6.1	20	2490	5490	82.8	645
