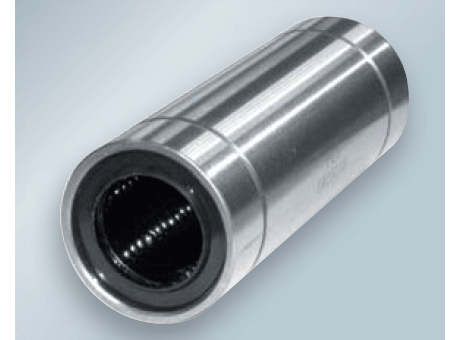

LME-L - Standard linear bearing

Manufacturer	FLI
Description	Standard linear bearing LME8LUU
Part number	LME8LUU
Dynamic load	430 N
Static load	820 N
Shaft diameter	8 mm
Outer diameter	16 mm
Mass	40 g

CAD models

Request for quotation

Product selection

Index	Selector	Part number	Number of ball circuits	dr (mm)	D (mm)	L (mm)	B (mm)	W (mm)	D1 (mm)	Eccentricity (µm)	Basic load - Dyn. C (N)	Basic load - Stat. Co (N)	Weight (g)
1	8	LME 8 L	4	8	16	46	33	1.1	15.2	15	430	820	40
2	9	LME 12 L	4	12	22	61	45.8	1.3	21	15	830	1600	80
3	1	LME 16 L	5	16	26	68	49.8	1.3	24.9	15	921	1780	115
4	2	LME 20 L	5	20	32	80	61	1.6	30.5	17	1370	2470	180
5	3	LME 25 L	6	25	40	112	82	1.85	38	17	1570	3140	430
6	4	LME 30 L	6	30	47	123	104.2	1.85	44.5	17	2500	5490	615
7	5	LME 40 L	6	40	62	151	121.2	2.15	59	20	3430	8040	1400
8	6	LME 50 L	6	50	75	192	155.2	2.65	72	20	6080	15900	2320
