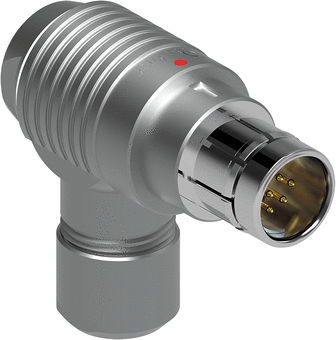

Right-Angle Plug Push-pull 6 way LV IP68 mated

WSO 104 A065-130-12H+

Manufacturer	Fischer Connectors
Description	Right-Angle Plug Push-pull 6 way LV IP68 mated
Part Number	119480
Series	Core Series Brass
Size	104
Connector Type	Plug
Locking System	Push-pull
Mounting Type	Cable Mounted
Bodystyle Design	Right-angle
Housing Material	Brass
Housing Color	Grey
Contact Gender	Male
Contact Termination	Solder

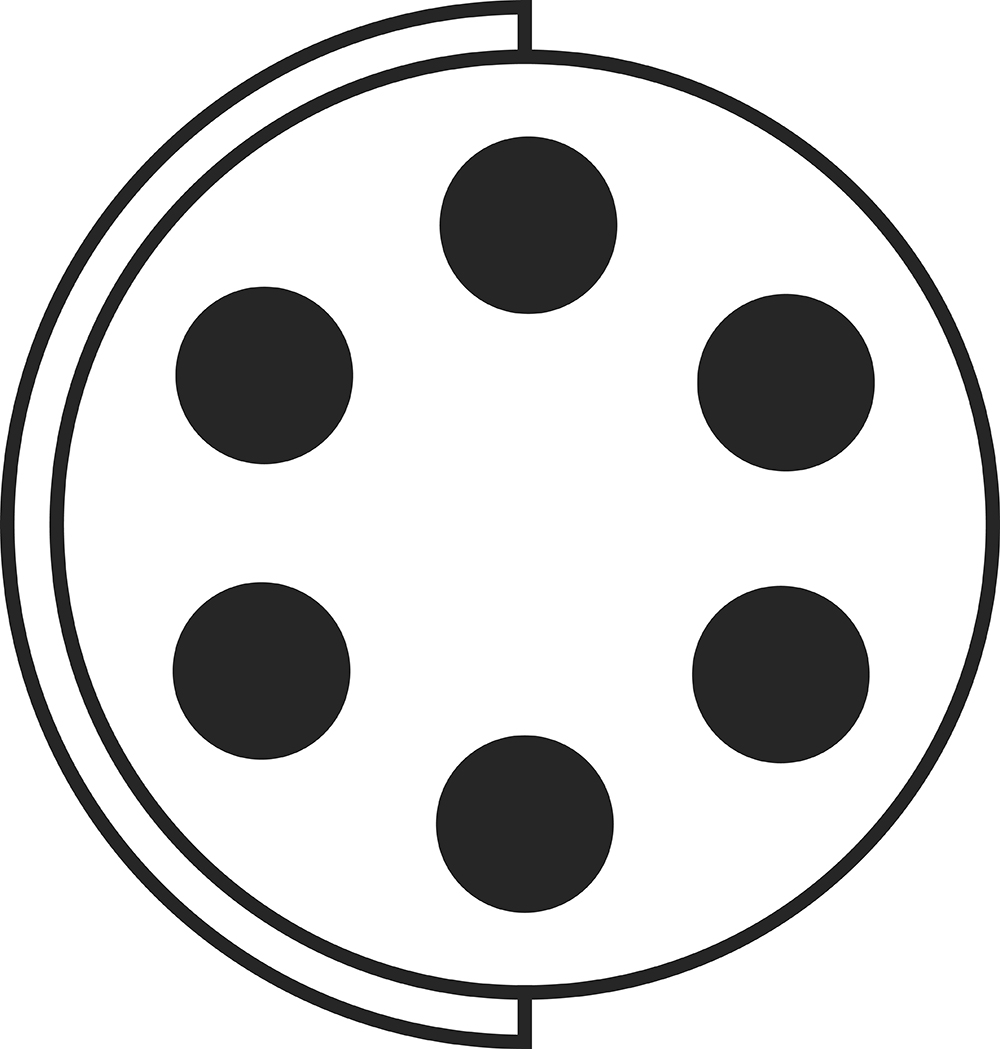

Contact Configuration	Multipole low voltage

Number of Contacts	6
Contact Diameter	6 LV x 0.9 mm
Current Per Contact	6 LV x 6.5 A
Minimal AWG	N/A
Maximal AWG	6 LV x 21 AWG
Minimal Cable Diamter	2.9
Maximal Cable Diameter	8.6999999999999993
Data Transmission	N/A
Sealing Performance	Up to IP68 mated
Operating Temperature	from -30°C up to 110°C
Clamp Set Integrated	No
Mating Cycles	10'000
Corresponding Nut	N/A

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Series	Size	Connector Type	Locking System	Mounting Type	Bodystyle Design	Housing Material	Housing Color	Contact Gender	Contact Termination	Contact Configuration	Number of Contacts	Contact Diameter	Current Per Contact	Minimal AWG	Maximal AWG	Minimal Cable Diamter	Maximal Cable Diameter	Data Transmission	Sealing Performance	Operating Temperature	Clamp Set Integrated	Mating Cycles	Corresponding Nut
1	1	119480	Right-Angle Plug Push-pull 6 way LV IP68 mated	Core Series Brass	104	Plug	Push-pull	Cable Mounted	Right-angle	Brass	Grey	Male	Solder	Multipole low voltage	6	6 LV x 0.9 mm	6 LV x 6.5 A	N/A	6 LV x 21 AWG	2.9	8.6999999999999993	N/A	Up to IP68 mated	from -30°C up to 110°C	No	10'000	N/A

Product Description

FISCHER CORE BRASS SERIES

Rugged, reliable, sealed or hermetic, lightweight and compact. The Fischer Core Series is trusted by technology-driven industries worldwide, from medical, defense and industrial automation, to test & measurement equipment.

HIGH-PERFORMANCE AND ROBUST

Wide range of housing types and contact block variants
Original standard push-pull locking system
Up to IP68 sealing (liquid tight)
Hermetic versions available (gas tight, vacuum tight)
Resistant to autoclave sterilization
10,000 mating cycles
