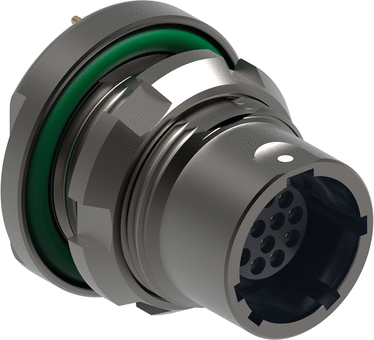

Panel Rear Mounted Receptacle Front-projecting 8 way LV Hermetic

UR01V11 F008S BK1 E1AB

Manufacturer	Fischer Connectors
Description	Panel Rear Mounted Receptacle Front-projecting 8 way LV Hermetic
Part Number	130365
Series	UltiMate™ Series
Size	11
Connector Type	Receptacle
Locking System	Plug-related
Mounting Type	Panel Rear Mounted
Bodystyle Design	Rear-projecting
Housing Material	Brass
Housing Color	Anthracite
Contact Gender	Female
Contact Termination	Solder

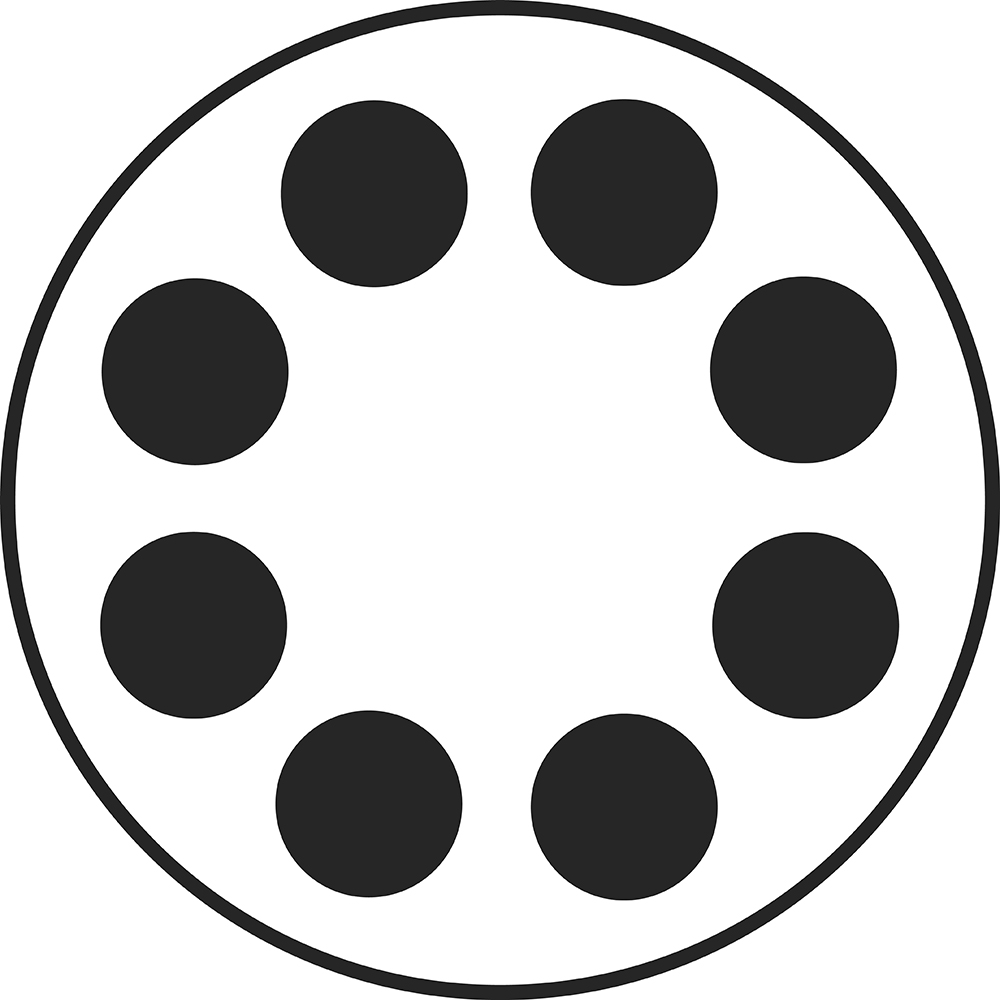

Contact Configuration	Multipole low voltage
Number of Contacts	8
Contact Diameter	8 LV x 0.7 mm
Current Per Contact	8 LV x 4.2 A
Minimal AWG	N/A
Maximal AWG	8 LV x 21 AWG
Minimal Cable Diamter	N/A
Maximal Cable Diameter	N/A
Data Transmission	N/A
Sealing Performance	Hermetic
Operating Temperature	from -55°C up to 135°C
Clamp Set Integrated	No
Mating Cycles	10'000

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Series	Size	Connector Type	Locking System	Mounting Type	Bodystyle Design	Housing Material	Housing Color	Contact Gender	Contact Termination	Contact Configuration	Number of Contacts	Contact Diameter	Current Per Contact	Minimal AWG	Maximal AWG	Minimal Cable Diamter	Maximal Cable Diameter	Data Transmission	Sealing Performance	Operating Temperature	Clamp Set Integrated	Mating Cycles
1	1	130365	Panel Rear Mounted Receptacle Front-projecting 8 way LV Hermetic	UltiMate™ Series	11	Receptacle	Plug-related	Panel Rear Mounted	Rear-projecting	Brass	Anthracite	Female	Solder	Multipole low voltage	8	8 LV x 0.7 mm	8 LV x 4.2 A	N/A	8 LV x 21 AWG	N/A	N/A	N/A	Hermetic	from -55°C up to 135°C	No	10'000

Product Description

FISCHER ULTIMATE™ SERIES

Utra-rugged, compact and versatile, the Fischer UltiMate™ Series offers a wide portfolio of sizes, signal and power configurations, for applications requiring both power and high-speed data transmission.

RUGGED, COMPACT, LIGHTWEIGHT

Extreme shock and vibration resistance
IP68 sealing 2m/24h (20m application dependent) / IP69
Hermetic versions available (gas tight, vacuum tight)
Corrosion resistance (1,000 hours of salt mist spray)
Operating temperatures from -55 °C to +135 °C
360° EMC shiedling
Blind mating
10,000 mating cycles
Color overmolding available
Compliant with MIL-STD-810 and MIL-STD-202

Documentation

Product Page - UltiMate™ Series

Datasheet

Technical Specifications
