LKDFV/CE 90-240 V AC

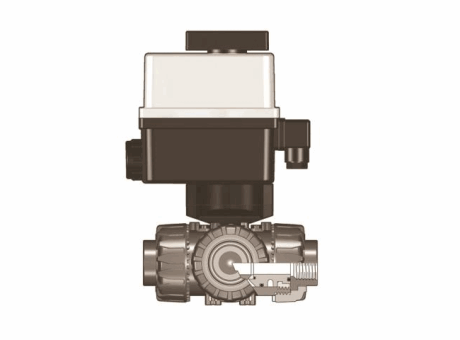

Electrically actuated DUAL BLOCK® three way ball valve with BS parallel socket threaded ends, T bore** and electric actuator multivolt 90-240 V AC 50-60 Hz



Manufacturer	FIP
Description	Electrically actuated DUAL BLOCK® three way ball valve with BS parallel socket threaded ends, T bore** and electric actuator multivolt 90-240 V AC 50-60 Hz
Item Number	LKDFVEM038E1
Markets availability	worldwide
g	1843
Notes

CAD models

Request for quotation

Product selection

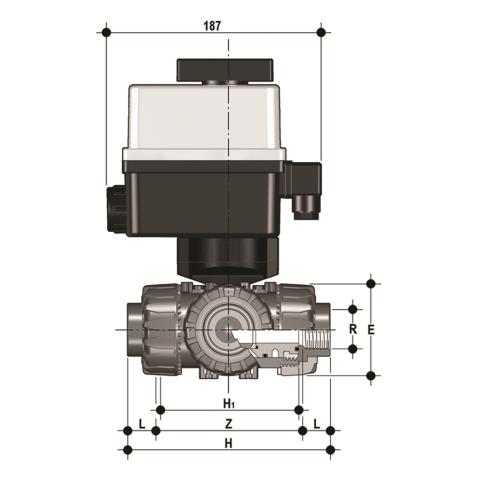

Index	Selector	Item Number	O-Ring Type	R	DN	PN	E	H	H1	L	Z	g
1	1	LKDFVEM038E1	EPDM	3/8"	10	16	54	118	80	11.4	95	1843
2	2	LKDFVEM012E1	EPDM	1/2"	15	16	54	125	80	15	95	1843
3	3	LKDFVEM034E1	EPDM	3/4"	20	16	65	146	100	16.3	114	2076
4	4	LKDFVEM100E1	EPDM	1"	25	16	73	166	110	19.1	129	2299
5	5	LKDFVEM114E1	EPDM	1" 1/4	32	16	86	195.5	131	21.4	151	2880
6	6	LKDFVEM112E1	EPDM	1" 1/2	40	16	98	211	148	21.4	166	3242
7	7	LKDFVEM200E1	EPDM	2"	50	*10	122	253.5	179	25.7	199	4362
8	8	LKDFVEM038F1	FKM	3/8"	10	16	54	118	80	11.4	95	1843
9	9	LKDFVEM012F1	FKM	1/2"	15	16	54	125	80	15	95	1843
10	10	LKDFVEM034F1	FKM	3/4"	20	16	65	146	100	16.3	114	2076
11	11	LKDFVEM100F1	FKM	1"	25	16	73	166	110	19.1	129	2299
12	12	LKDFVEM114F1	FKM	1" 1/4	32	16	86	195.5	131	21.4	151	2880
13	13	LKDFVEM112F1	FKM	1" 1/2	40	16	98	211	148	21.4	166	3242
14	14	LKDFVEM200F1	FKM	2"	50	*10	122	253.5	179	25.7	199	4362
