DKBUAV/CP NC

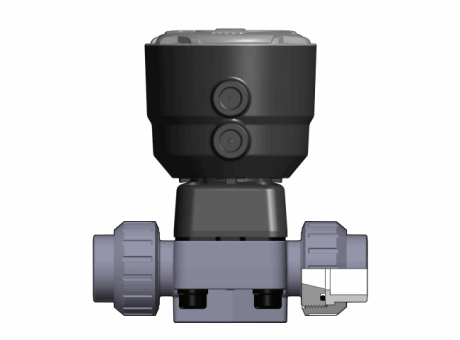

Pneumatically actuated diaphragm valve Normally Closed, with female union ends for solvent welding, ASTM PVC-U series

Manufacturer	FIP
Description	Pneumatically actuated diaphragm valve Normally Closed, with female union ends for solvent welding, ASTM PVC-U series
Item Number	DKBUAVNC012E
Markets availability	worldwide
g	685

CAD models

Request for quotation

Product selection

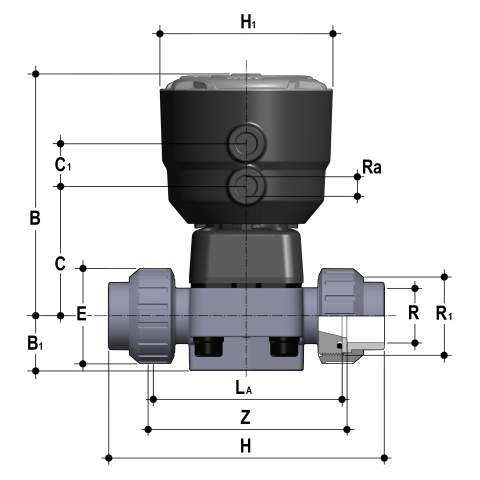

Index	Selector	Item Number	Diaphragm Type	d	DN	R1	PN	B	B1	C	C1	E	H	H1	La	Ra	Z	g
1	1	DKBUAVNC012E	EPDM	1/2"	15	1"	6	134	25	66	24	41	143	97	90	1/4"	98	685
2	2	DKBUAVNC034E	EPDM	3/4"	20	1"1/4	6	137	30	69	24	50	167	97	108	1/4"	115	747
3	3	DKBUAVNC100E	EPDM	1"	25	1"1/2	6	145	33	78	24	58	180	97	116	1/4"	122	975
4	4	DKBUAVNC114E	EPDM	1"1/4	32	2"	6	149	30	82	24	72	208	97	134	1/4"	144	1101
5	5	DKBUAVNC112E	EPDM	1"1/2	40	2"1/2	6	193	35	112	24	79	234	126	154	1/4"	164	2722
6	6	DKBUAVNC200E	EPDM	2"	50	2"3/4	6	231	46	142	24	98	272	157	184	1/4"	195	5984
7	7	DKBUAVNC012F	FPM	1/2"	15	1"	6	134	25	66	24	41	143	97	90	1/4"	98	685
8	8	DKBUAVNC034F	FPM	3/4"	20	1"1/4	6	137	30	69	24	50	167	97	108	1/4"	115	747
9	9	DKBUAVNC100F	FPM	1"	25	1"1/2	6	145	33	78	24	58	180	97	116	1/4"	122	975
10	10	DKBUAVNC114F	FPM	1"1/4	32	2"	6	149	30	82	24	72	208	97	134	1/4"	144	1101
11	11	DKBUAVNC112F	FPM	1"1/2	40	2"1/2	6	193	35	112	24	79	234	126	154	1/4"	164	2722
12	12	DKBUAVNC200F	FPM	2"	50	2"3/4	6	231	46	142	24	98	272	157	184	1/4"	195	5984
13	13	DKBUAVNC012P	PTFE	1/2"	15	1"	6	134	25	66	24	41	143	97	90	1/4"	98	685
14	14	DKBUAVNC034P	PTFE	3/4"	20	1"1/4	6	137	30	69	24	50	167	97	108	1/4"	115	747
15	15	DKBUAVNC100P	PTFE	1"	25	1"1/2	6	145	33	78	24	58	180	97	116	1/4"	122	975
16	16	DKBUAVNC114P	PTFE	1"1/4	32	2"	6	149	30	82	24	72	208	97	134	1/4"	144	1101
17	17	DKBUAVNC112P	PTFE	1"1/2	40	2"1/2	6	193	35	112	24	79	234	126	154	1/4"	164	2722
18	18	DKBUAVNC200P	PTFE	2"	50	2"3/4	6	231	46	142	24	98	272	157	184	1/4"	195	5984
