CROV

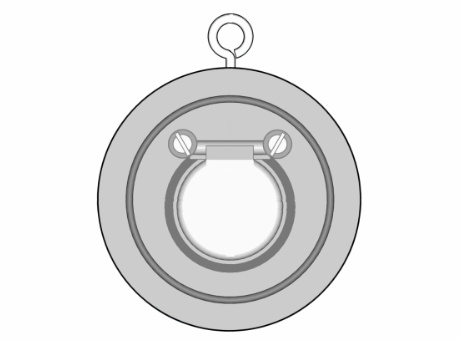

Wafer check valve in PVC-U/EPDM



Manufacturer	FIP
Description	Wafer check valve in PVC-U/EPDM
Item Number	CROV050E
Markets availability	worldwide
g	160

CAD models

Request for quotation

Product selection

Index	Selector	Item Number	d	DN	A	B	C	Z	De ISO/DIN	DI	OP	g
1	1	CROV050E	50	40	72	25	28	16	95	22	0-5	160
2	2	CROV063E	63	50	86	37	29	20	109	32	0-5	260
3	3	CROV075E	75	65	105	50	31	20	129	40	0-5	330
4	4	CROV090E	90	80	119	61	32	20	144	54	0-5	400
5	5	CROV110E	110	100	146	77	31	22	164	70	0-5	560
6	6	CROV140E	140	125	173	94	35	23	195	92	0-5	760
7	7	CROV160E	160	150	197	100	40	25	220	105	0-5	1120
8	8	CROV225E	225	200	255	152	38	35	275	154	0-5	2130
9	9	CROV280E	280	250	312	180	41	40	330	192	0-5	3540
10	10	CROV315E	315	300	363	215	41	45	380	227	0-5	5350
