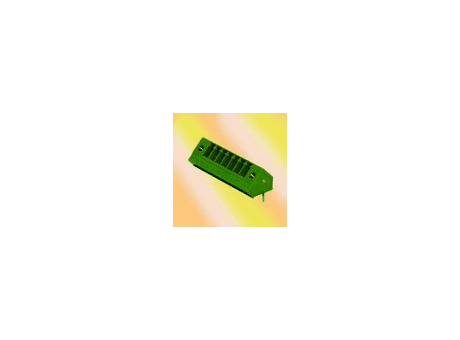

Terminal Blocks Pluggable socket, 45d angled, flange, 3.81mm pitch, 9 position

Pluggable socket

Manufacturer	FCI
Description	Terminal Blocks Pluggable socket, 45d angled, flange, 3.81mm pitch, 9 position
Part Number	20020131D091A01LF

CAD models

Index	Selector	Part Number	Description	Orientation	RoHS Lead Free Compatible	Series Number	Board attachment	Number of Positions	Pitch	Current rating
1	1	20020131D091A01LF	Terminal Blocks Pluggable socket, 45d angled, flange, 3.81mm pitch, 9 position	45D angle with flange	Yes	20020131	TMT	9	3.81 mm	8A
