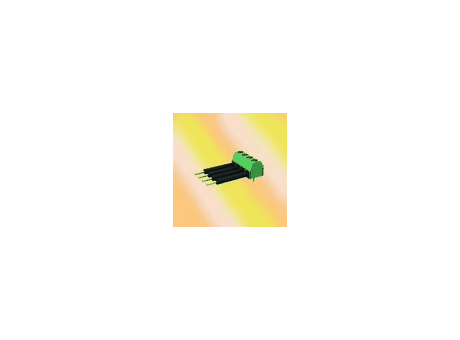

Terminal Blocks Fixed, horizontal wire-inlet, 5 mm pitch, 6 position

Fixed

Manufacturer	FCI
Description	Terminal Blocks Fixed, horizontal wire-inlet, 5 mm pitch, 6 position
Part Number	20020316G061B01LF

CAD models

Index	Selector	Part Number	Description	Orientation	RoHS Lead Free Compatible	Contact type	Series Number	Board attachment	Voltage rating	Number of Positions	Stranded wire size (AWG)	Solid wire size (AWG)	Pitch	Current rating
1	1	20020316G061B01LF	Terminal Blocks Fixed, horizontal wire-inlet, 5 mm pitch, 6 position	Horizontal	Yes	screw contact	20020316	TMT	300V	6	12 to 28	12 to 28	5.00 mm	16A
