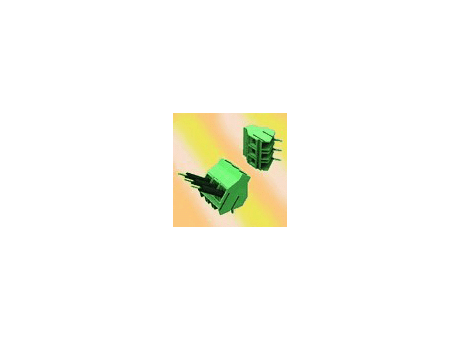

Terminal Blocks Fixed, angled wire-inlet, 5.08 mm pitch, 16 position

Fixed

Manufacturer	FCI
Description	Terminal Blocks Fixed, angled wire-inlet, 5.08 mm pitch, 16 position
Part Number	20020704H161B01LF

CAD models

Index	Selector	Part Number	Description	Orientation	RoHS Lead Free Compatible	Contact type	Series Number	Board attachment	Voltage rating	Number of Positions	Stranded wire size (AWG)	Solid wire size (AWG)	Pitch	Current rating
1	1	20020704H161B01LF	Terminal Blocks Fixed, angled wire-inlet, 5.08 mm pitch, 16 position	Angled	Yes	screw contact	20020704	TMT	300V	16	12 to 24	12 to 24	5.08 mm	10A
