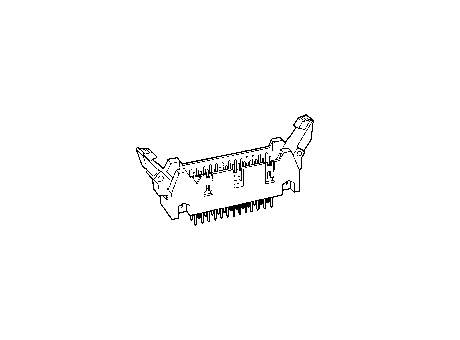

Quickie® Double Row, 34 Positions, 2.54 mm (0.1 in.), Vertical, Eject Latch Header 15u"/0.38um min. Au/GXT Plating

Quickie® Headers

Manufacturer	FCI
Description	Quickie® Double Row, 34 Positions, 2.54 mm (0.1 in.), Vertical, Eject Latch Header 15u"/0.38um min. Au/GXT Plating
Part Number	65863324LF

CAD models

Index	Selector	Part Number	Description	Orientation	RoHS Lead Free Compatible	Number of rows	Type	Plating (Contact area)	Number of contacts (Total)	Plating (Tail)	Attachment type (Board)	Solder process
1	1	65863324LF	Quickie® Double Row, 34 Positions, 2.54 mm (0.1 in.), Vertical, Eject Latch Header 15u"/0.38um min. Au/GXT Plating	Vertical	Yes	2	Eject Latch	15u"/0.38um min. Au over 50u"/1.27u Ni	34	15u"/0.38um min. Au over 50u"/1.27u Ni	Through Mount	Wave
