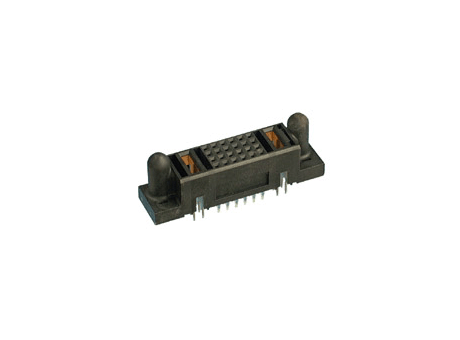

PwrBlade® 6P 24S 6P PF Vertical Receptacle

PwrBlade® Board-to-Board

Manufacturer	FCI
Description	PwrBlade® 6P 24S 6P PF Vertical Receptacle
Part Number	5174010602406CALF

CAD models

Index	Selector	Part Number	Description	Orientation	RoHS Lead Free Compatible	Gender	System Application	Tail Options	Receptacle Pin Pattern (Right to Left)	Number of contacts (Total - Signal)	Number of contacts (Total - Power)	Guided Mating
1	1	5174010602406CALF	PwrBlade® 6P 24S 6P PF Vertical Receptacle	Vertical	Yes	Receptacle	Standard Product	0.135 in. Press-Fit	Power/Signal/Power	24	12	Guide Pin
