PwrBlade® 5P 24S 1M 6P PF Vertical Receptacle

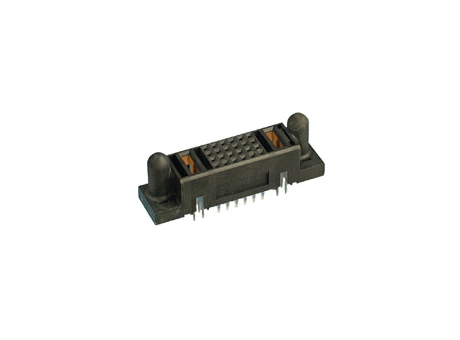

PwrBlade® Board-to-Board

Manufacturer	FCI
Description	PwrBlade® 5P 24S 1M 6P PF Vertical Receptacle
Part Number	51667XX001

CAD models

Request for quotation

Index	Selector	Part Number	Description	Orientation	RoHS Lead Free Compatible	Gender	System Application	Tail Options	Receptacle Pin Pattern (Right to Left)	Number of contacts (Total - Signal)	Number of contacts (Total - Power)	Guided Mating	Meets SSI Specification
1	1	51667XX001	PwrBlade® 5P 24S 1M 6P PF Vertical Receptacle	Vertical	Yes	Receptacle	SSI	0.135 in. Press-Fit	Power/Signal/Power	24	11	Guide Pin	Yes
