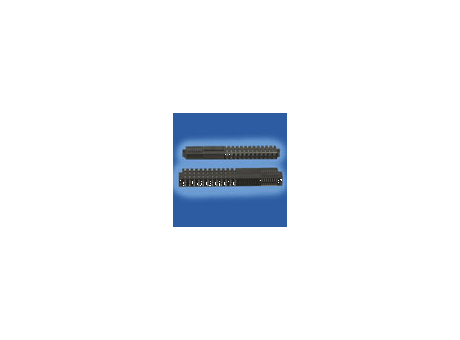

PwrBlade+™ 10HDP+32S PF Vertical Receptacle

PwrBlade+™

Manufacturer	FCI
Description	PwrBlade+™ 10HDP+32S PF Vertical Receptacle
Part Number	10106139A008001LF

CAD models

Index	Selector	Part Number	Description	Orientation	Gender	System Application	Tail Options	Receptacle Pin Pattern (Right to Left)	Number of contacts (Total - Signal)	Number of contacts (Total - Power)	Header Pin Pattern (Left to Right)	Guided Mating
1	1	10106139A008001LF	PwrBlade+™ 10HDP+32S PF Vertical Receptacle	Vertical	Receptacle	Select Spacing, Standard Loading	3.43mm Press-Fit	Power/Signal	32	10	Power/Signal	Guide Pin
