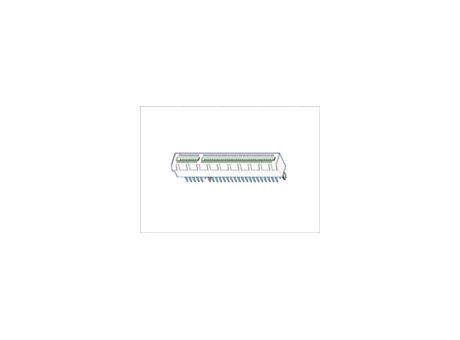

PCI Express x8 Vertical Card Edge Connector, 98 Positions, 1 mm (0.039 in.) Pitch

PCI Express Connectors

Manufacturer	FCI
Description	PCI Express x8 Vertical Card Edge Connector, 98 Positions, 1 mm (0.039 in.) Pitch
Part Number	1001878311302T

CAD models

Index	Selector	Part Number	Description	Plating (Contact area)	Number of contacts (Total)	Thickness (Board)	Color (Housing)	Solder process	Orientation (Features)	Component Type
1	1	1001878311302T	PCI Express x8 Vertical Card Edge Connector, 98 Positions, 1 mm (0.039 in.) Pitch	0.76 µm (30 µin.) Gold over 1.27 µm (50 µin.) Nickel	98 (x8)	1.56 mm (0.062 in.)	Black	Reflow Solder	Metal Board Locks	Vertical - Mount Connector, Solder Termination
