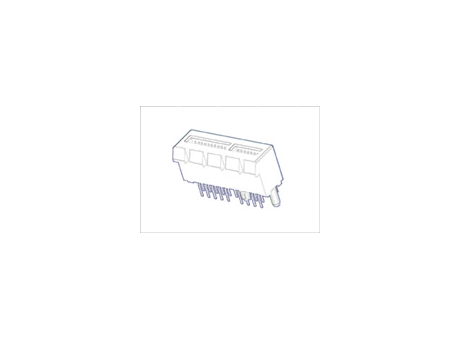

PCI Express x1 Vertical Card Edge Connector, 36 Positions, 1 mm (0.039 in.) Pitch

PCI Express Connectors

Manufacturer	FCI
Description	PCI Express x1 Vertical Card Edge Connector, 36 Positions, 1 mm (0.039 in.) Pitch
Part Number	1001878310510T

CAD models

Index	Selector	Part Number	Description	Plating (Contact area)	Number of contacts (Total)	Thickness (Board)	Color (Housing)	Solder process	Orientation (Features)	Component Type
1	1	1001878310510T	PCI Express x1 Vertical Card Edge Connector, 36 Positions, 1 mm (0.039 in.) Pitch	Gold Flash over 1.27 µm (50 µin.) Nickel	36 (x1)	2.36 mm (0.093 in.)	Black	Reflow Solder	Plastic Post	Vertical - Mount Connector, Solder Termination
