PCI Express Surface Mount Card Edge Connector, 98 Positions

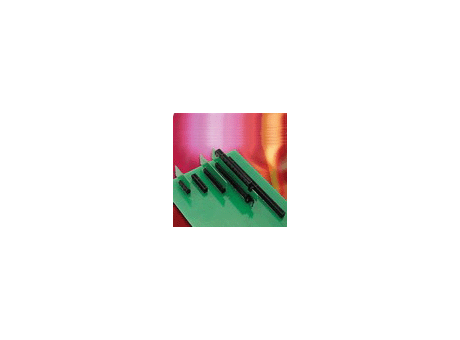

PCI Express Connectors

Manufacturer	FCI
Description	PCI Express Surface Mount Card Edge Connector, 98 Positions
Part Number	10061913112TLF

CAD models

Request for quotation

Index	CAD	Selector	Part Number	Description	RoHS Lead Free Compatible	Plating (Contact area)	Number of contacts (Total)	Thickness (Board)	Color (Housing)	Solder process	Orientation (Features)	Component Type
1	No CAD available	1	10061913112TLF	PCI Express Surface Mount Card Edge Connector, 98 Positions	Yes	0.38 µm (15 µin.) Gold over 1.27 µm (50 µin.) Nickel	98 (x8)	1.56 mm (0.062 in.)	Black	Reflow Solder	Plastic Post	Surface Mount Connector
