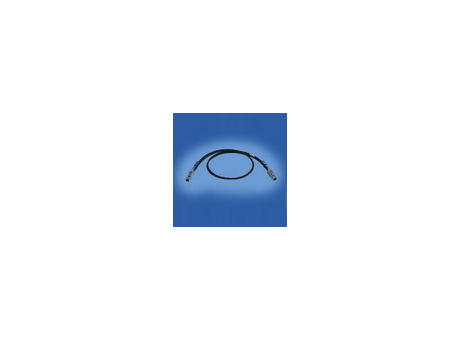

mini-SAS HD 4X to 4X Cable, Passive, 6Gb/s, 26 AWG, 7.0m, PVC jacket

Cable Assemblies

Manufacturer	FCI
Description	mini-SAS HD 4X to 4X Cable, Passive, 6Gb/s, 26 AWG, 7.0m, PVC jacket
Part Number	101120414070LF

CAD models

Index	Selector	Part Number	Description	Series	Product Type	Length (Overall)	Data rate (Signal pair)	Number of signal pairs	Number of channels	Conductor Size	Literature	Impedence (Differential)	Application Type
1	1	101120414070LF	mini-SAS HD 4X to 4X Cable, Passive, 6Gb/s, 26 AWG, 7.0m, PVC jacket	10112041	Cable Assembly	7.0 meter	6.0 Gbps	8	4x	26 AWG	ELXMINSASHD0112ELT	100 Ω +/- 10 Ω	External
