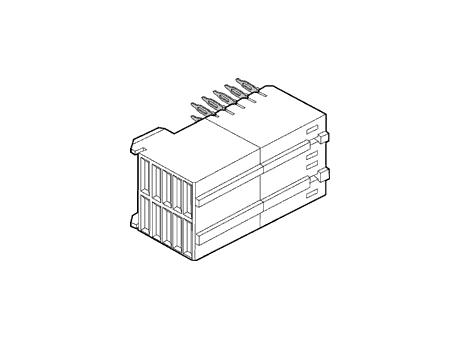

METRAL® 5 Row Power Receptacle, Right Angle, Pin-in-Paste

Metral® Standard Receptacles

Manufacturer	FCI
Description	METRAL® 5 Row Power Receptacle, Right Angle, Pin-in-Paste
Part Number	63793101LF

CAD models

Index	Selector	Part Number	Description	Orientation	Contact type	Product Type	Number of rows	Length (Tail)	Number of contacts (Total)	Termination Style	Number of contacts (per row)	Thickness (Board)
1	1	63793101LF	METRAL® 5 Row Power Receptacle, Right Angle, Pin-in-Paste	Right Angle	Power	Receptacle	5	2.9 mm (0.114 in.)	10	Press-Fit	2	1.6 mm (0.063 in.) min.
