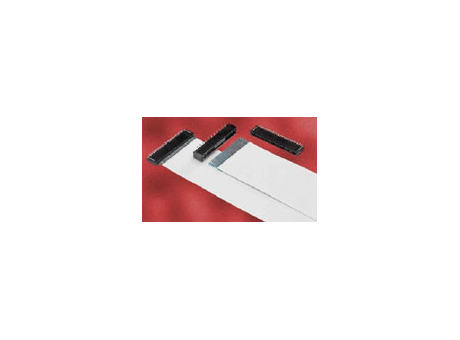

FPC/FFC HFW-R series, 7 Pos, Upper Side Contact, Side Entry Surface Mount Non-ZIF Connector, 1 mm (0.039 in.), Tin-Alloy plated Terminals with Hold-down tab

1.0 mm (0.039 in.)

Manufacturer	FCI
Description	FPC/FFC HFW-R series, 7 Pos, Upper Side Contact, Side Entry Surface Mount Non-ZIF Connector, 1 mm (0.039 in.), Tin-Alloy plated Terminals with Hold-down tab
Part Number	HFW7R2STE1MTLF

CAD models

Index	Selector	Part Number	Description	Orientation	RoHS Lead Free Compatible	Product Series	Number of contacts	Contact location	Mounting style (Board)	Cable Type	Cable Insertion
1	1	HFW7R2STE1MTLF	FPC/FFC HFW-R series, 7 Pos, Upper Side Contact, Side Entry Surface Mount Non-ZIF Connector, 1 mm (0.039 in.), Tin-Alloy plated Terminals with Hold-down tab	Right Angle	Yes	HFW-R	7	Upper	Surface Mount	FPC/FFC	Non-ZIF
