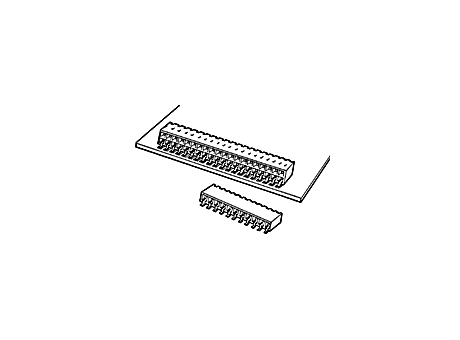

DUBOX™ 9 Position Horizontal Card Connector, Surface Mount, Single row

PCB Receptacles

Manufacturer	FCI
Description	DUBOX™ 9 Position Horizontal Card Connector, Surface Mount, Single row
Part Number	71607309LF

CAD models

Index	Selector	Part Number	Description	Orientation	RoHS Lead Free Compatible	Number of rows	Plating (Contact area)	Number of contacts (per row)	Series Number	Packaging	Hold Down Style	Footprint (Board)
1	1	71607309LF	DUBOX™ 9 Position Horizontal Card Connector, Surface Mount, Single row	Horizontal	Yes	1	0.76 µm (30 µin.) Gold	9	71607	Tube	No Locating Pegs	2.54 mm x 11.43 mm (0.1 in. x 0.45 in.)
