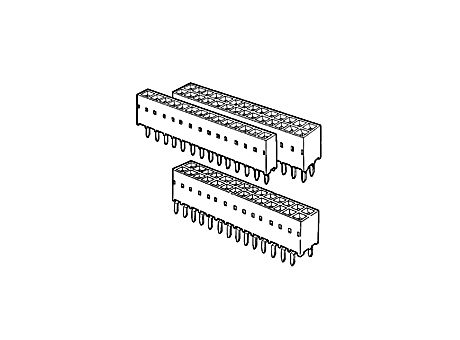

DUBOX™ 48 Position PCB Mounted Receptacle, Through Mount, Dual Entry, Single Row

PCB Receptacles

Manufacturer	FCI
Description	DUBOX™ 48 Position PCB Mounted Receptacle, Through Mount, Dual Entry, Single Row
Part Number	71920448LF

CAD models

Index	Selector	Part Number	Description	Orientation	RoHS Lead Free Compatible	Number of rows	Plating (Contact area)	Number of contacts (per row)	Series Number	Packaging	Hold Down Style	Footprint (Board)
1	1	71920448LF	DUBOX™ 48 Position PCB Mounted Receptacle, Through Mount, Dual Entry, Single Row	Vertical	No	1	5.08 µm (200 µin.) Tin	48	71920	Tube	No Locating Pegs	2.54 mm x 3.17 mm (0.1 in. x 0.125 in.)

Manufacturer of Connector and Connector Systems
