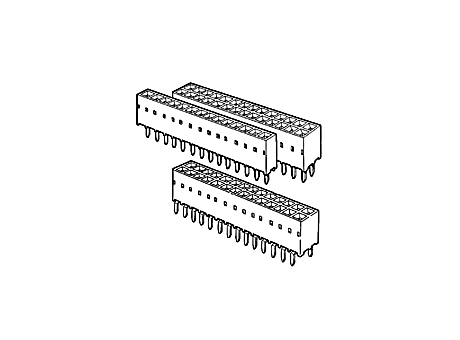

DUBOX™ 40 Position Vertical Card Connector, Surface Mount, Double row, Dual entry

PCB Receptacles

Manufacturer	FCI
Description	DUBOX™ 40 Position Vertical Card Connector, Surface Mount, Double row, Dual entry
Part Number	91615420LF

CAD models

Index	Selector	Part Number	Description	Orientation	RoHS Lead Free Compatible	Number of rows	Plating (Contact area)	Number of contacts (per row)	Series Number	Packaging	Hold Down Style	Footprint (Board)
1	1	91615420LF	DUBOX™ 40 Position Vertical Card Connector, Surface Mount, Double row, Dual entry	Vertical	Yes	2	5.08 µm (200 µin.) Tin	20	91615	Tube	External Hold Downs	2.54 mm x 7.2 mm (0.1 in. x 0.283 in.)
