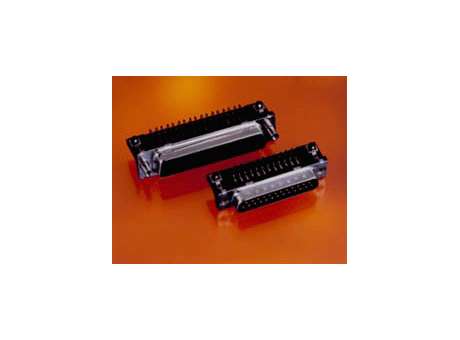

D-Subminiature Delta D Signal 9 way Socket RA Press-Fit Europe standard, 500 cycles, Harpoons + Insert UNC 4 - 40 + Elec cont., 1.6 mm, 2.4 mm, 3.2 mm or more PCB thickness

D-Sub Pressfit

Manufacturer	FCI
Description	D-Subminiature Delta D Signal 9 way Socket RA Press-Fit Europe standard, 500 cycles, Harpoons + Insert UNC 4 - 40 + Elec cont., 1.6 mm, 2.4 mm, 3.2 mm or more PCB thickness
Part Number	D09S81C6GX00LF

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Orientation	RoHS Lead Free Compatible	Gender	Number of contacts (Total)	Termination Style	Termination	Thickness (Board)	Most Popular Configuration	Mounting accessory	Durability (Plating - Mating cycles)
1	1	D09S81C6GX00LF	D-Subminiature Delta D Signal 9 way Socket RA Press-Fit Europe standard, 500 cycles, Harpoons + Insert UNC 4 - 40 + Elec cont., 1.6 mm, 2.4 mm, 3.2 mm or more PCB thickness	Right Angle	Yes	Socket	9	Press-Fit	Europe Standard	1.6 mm, 2.4 mm, 3.2 mm or more	Yes	Harpoons + Threaded Insert UNC 4-40 + Electrical continuity	High Perf (>500 Mating Cycles)

Contact the supplier

FCi

Manufacturer of Connector and Connector Systems
