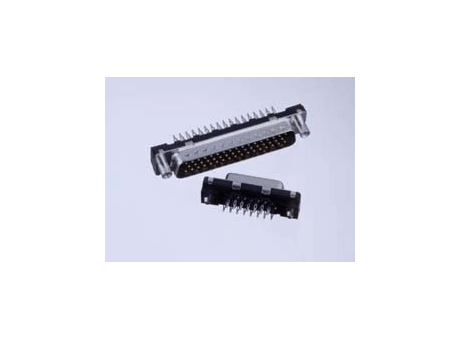

D-Subminiature Delta D Signal 9 way Pin Straight Press-Fit, 500 cycles, Standard Hole, 1.6 mm, 2.4 mm, 3.2 mm or more PCB thickness

D-Sub Pressfit

Manufacturer	FCI
Description	D-Subminiature Delta D Signal 9 way Pin Straight Press-Fit, 500 cycles, Standard Hole, 1.6 mm, 2.4 mm, 3.2 mm or more PCB thickness
Part Number	D09P90C6PA00LF

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Orientation	RoHS Lead Free Compatible	Gender	Number of contacts (Total)	Termination Style	Termination	Thickness (Board)	Most Popular Configuration	Mounting accessory	Durability (Plating - Mating cycles)
1	1	D09P90C6PA00LF	D-Subminiature Delta D Signal 9 way Pin Straight Press-Fit, 500 cycles, Standard Hole, 1.6 mm, 2.4 mm, 3.2 mm or more PCB thickness	Straight	Yes	Pin	9	Press-Fit	Low Profile	1.6 mm, 2.4 mm, 3.2 mm or more	Yes	Standard Hole	High Perf (>500 Mating Cycles)
