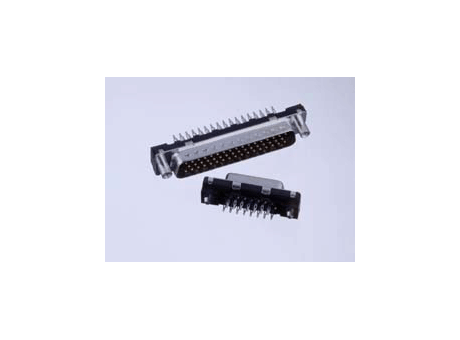

D-Subminiature Delta D Signal 9 way Pin Straight Press-Fit, 500 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm, 2.4 mm, 3.2 mm or more PCB thickness

D-Sub Pressfit

Manufacturer	FCI
Description	D-Subminiature Delta D Signal 9 way Pin Straight Press-Fit, 500 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm, 2.4 mm, 3.2 mm or more PCB thickness
Part Number	D09P90C6GV00LF

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Orientation	RoHS Lead Free Compatible	Gender	Number of contacts (Total)	Termination Style	Termination	Thickness (Board)	Most Popular Configuration	Mounting accessory	Durability (Plating - Mating cycles)
1	1	D09P90C6GV00LF	D-Subminiature Delta D Signal 9 way Pin Straight Press-Fit, 500 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm, 2.4 mm, 3.2 mm or more PCB thickness	Straight	Yes	Pin	9	Press-Fit	Low Profile	1.6 mm, 2.4 mm, 3.2 mm or more	Not Applicable	Harpoons + Female Screw UNC 4-40 + Electrical continuity	High Perf (>500 Mating Cycles)

Contact the supplier

FCi

Manufacturer of Connector and Connector Systems

FCI

FCI
159 KAMPONG AMPAT, KA, PLACE, #04-01
368328 SINGAPORE - KA PLACE
Singapore
www.fciconnect.com
