D-Subminiature Delta D Signal 37 way Socket Right Angle Press-Fit Europe standard, 200 cycles, Harpoons + Insert M3 + Elec cont., 1.6mm, 2.4 mm, 3.2 mm or more PCB thickness

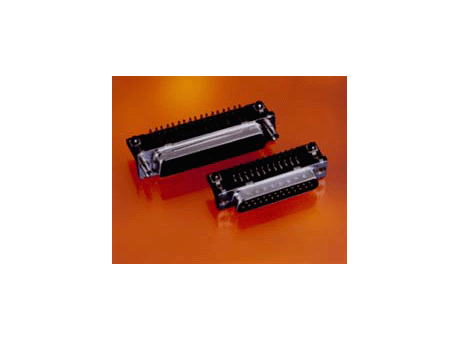

D-Sub Pressfit



Manufacturer	FCI
Description	D-Subminiature Delta D Signal 37 way Socket Right Angle Press-Fit Europe standard, 200 cycles, Harpoons + Insert M3 + Elec cont., 1.6mm, 2.4 mm, 3.2 mm or more PCB thickness
Part Number	D37S81C4GL00LF

CAD models

Request for quotation

Product selection

Index	CAD	Selector	Part Number	Description	Orientation	RoHS Lead Free Compatible	Gender	Number of contacts (Total)	Termination Style	Termination	Thickness (Board)	Most Popular Configuration	Mounting accessory	Durability (Plating - Mating cycles)
1	No CAD available	1	D37S81C4GL00LF	D-Subminiature Delta D Signal 37 way Socket Right Angle Press-Fit Europe standard, 200 cycles, Harpoons + Insert M3 + Elec cont., 1.6mm, 2.4 mm, 3.2 mm or more PCB thickness	Right Angle	Yes	Socket	37	Press-Fit	Europe Standard	1.6 mm, 2.4 mm, 3.2 mm or more	Yes	Harpoons + Threaded Insert M3 + Electrical continuity	Std Class (>200 Mating Cycles)

Contact the supplier

FCi

Manufacturer of Connector and Connector Systems
