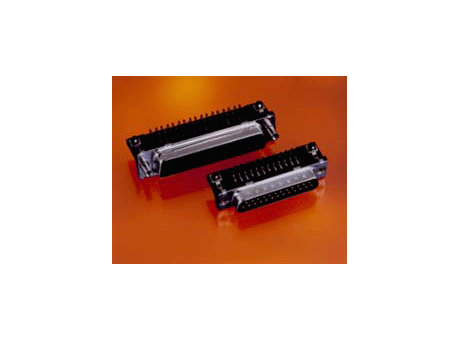

D-Subminiature Delta D Signal 37 way Pin Right Angle Press-Fit Eurostyle standard, 500 cycles, Harpoons + Insert M3 + Elec cont., 1.6mm, 2.4 mm, 3.2 mm or more PCB thickness

D-Sub Pressfit

Manufacturer	FCI
Description	D-Subminiature Delta D Signal 37 way Pin Right Angle Press-Fit Eurostyle standard, 500 cycles, Harpoons + Insert M3 + Elec cont., 1.6mm, 2.4 mm, 3.2 mm or more PCB thickness
Part Number	D37P82C6GL00LF

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Orientation	RoHS Lead Free Compatible	Gender	Number of contacts (Total)	Termination Style	Termination	Thickness (Board)	Most Popular Configuration	Mounting accessory	Durability (Plating - Mating cycles)
1	1	D37P82C6GL00LF	D-Subminiature Delta D Signal 37 way Pin Right Angle Press-Fit Eurostyle standard, 500 cycles, Harpoons + Insert M3 + Elec cont., 1.6mm, 2.4 mm, 3.2 mm or more PCB thickness	Right Angle	Yes	Pin	37	Press-Fit	Eurostyle Standard	1.6 mm, 2.4 mm, 3.2 mm or more	Not Applicable	Harpoons + Threaded Insert M3 + Electrical continuity	High Perf (>500 Mating Cycles)
