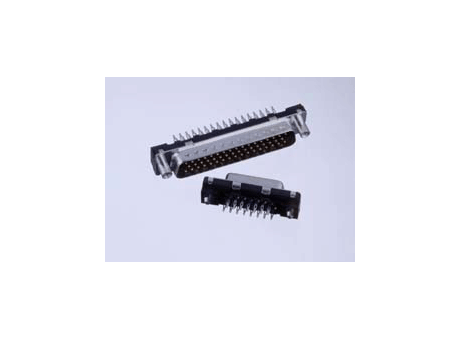

D-Subminiature Delta D Signal 25 way Socket Straight Press-Fit, 500 cycles, Harpoons + Threaded Insert UNC 4 - 40 + Elec cont., 1.6 mm, 2.4 mm, 3.2 mm or more PCB thickness

D-Sub Pressfit

Manufacturer	FCI
Description	D-Subminiature Delta D Signal 25 way Socket Straight Press-Fit, 500 cycles, Harpoons + Threaded Insert UNC 4 - 40 + Elec cont., 1.6 mm, 2.4 mm, 3.2 mm or more PCB thickness
Part Number	D25S90C6GX00LF

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Orientation	RoHS Lead Free Compatible	Gender	Number of contacts (Total)	Termination Style	Termination	Thickness (Board)	Most Popular Configuration	Mounting accessory	Durability (Plating - Mating cycles)
1	1	D25S90C6GX00LF	D-Subminiature Delta D Signal 25 way Socket Straight Press-Fit, 500 cycles, Harpoons + Threaded Insert UNC 4 - 40 + Elec cont., 1.6 mm, 2.4 mm, 3.2 mm or more PCB thickness	Straight	Yes	Socket	25	Press-Fit	Low Profile	1.6 mm, 2.4 mm, 3.2 mm or more	Yes	Harpoons + Threaded Insert UNC 4-40 + Electrical continuity	High Perf (>500 Mating Cycles)

Contact the supplier

FCi

Manufacturer of Connector and Connector Systems

FCI

FCI
159 KAMPONG AMPAT, KA, PLACE, #04-01
368328 SINGAPORE - KA PLACE
Singapore
www.fciconnect.com

Google Map
