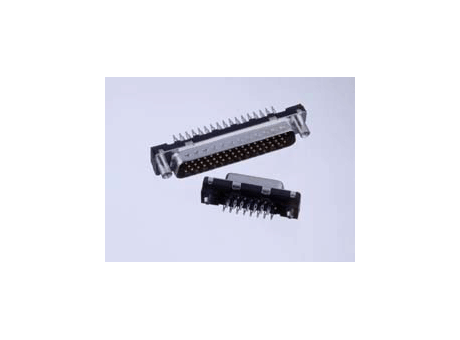

D-Subminiature Delta D Signal 25 way Pin Straight Press-Fit, 200 cycles, Threaded Insert M3, 1.6 mm, 2.4 mm, 3.2 mm or more PCB thickness

D-Sub Pressfit

Manufacturer	FCI
Description	D-Subminiature Delta D Signal 25 way Pin Straight Press-Fit, 200 cycles, Threaded Insert M3, 1.6 mm, 2.4 mm, 3.2 mm or more PCB thickness
Part Number	D25P90C4PL00LF

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Orientation	RoHS Lead Free Compatible	Gender	Number of contacts (Total)	Termination Style	Termination	Thickness (Board)	Most Popular Configuration	Mounting accessory	Durability (Plating - Mating cycles)
1	1	D25P90C4PL00LF	D-Subminiature Delta D Signal 25 way Pin Straight Press-Fit, 200 cycles, Threaded Insert M3, 1.6 mm, 2.4 mm, 3.2 mm or more PCB thickness	Straight	Yes	Pin	25	Press-Fit	Low Profile	1.6 mm, 2.4 mm, 3.2 mm or more	Not Applicable	Threaded Insert M3	Std Class (>200 Mating Cycles)

Contact the supplier

FCi

Manufacturer of Connector and Connector Systems
