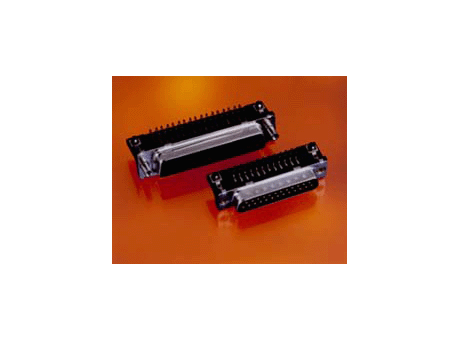

D-Subminiature Delta D Signal 25 way Pin Right Angle Press-Fit Eurostyle standard, 200 cycles, Standard Hole, 1.6 mm, 2.4 mm, 3.2 mm or more PCB thickness

D-Sub Pressfit

Manufacturer	FCI
Description	D-Subminiature Delta D Signal 25 way Pin Right Angle Press-Fit Eurostyle standard, 200 cycles, Standard Hole, 1.6 mm, 2.4 mm, 3.2 mm or more PCB thickness
Part Number	D25P82C4PA00LF

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Orientation	RoHS Lead Free Compatible	Gender	Number of contacts (Total)	Termination Style	Termination	Thickness (Board)	Most Popular Configuration	Mounting accessory	Durability (Plating - Mating cycles)
1	1	D25P82C4PA00LF	D-Subminiature Delta D Signal 25 way Pin Right Angle Press-Fit Eurostyle standard, 200 cycles, Standard Hole, 1.6 mm, 2.4 mm, 3.2 mm or more PCB thickness	Right Angle	Yes	Pin	25	Press-Fit	Eurostyle Standard	1.6 mm, 2.4 mm, 3.2 mm or more	Not Applicable	Standard Hole	Std Class (>200 Mating Cycles)
