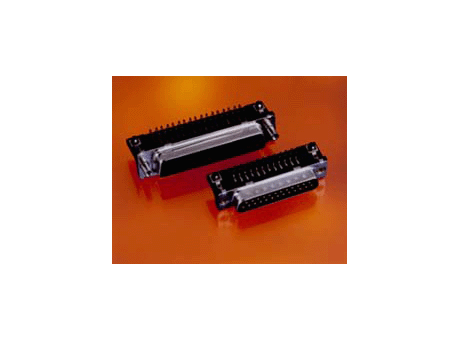

D-Subminiature Delta D Signal 15 way Socket RA Press-Fit Eurostyle standard, 200 cycles, Harpoons+Female Screw UNC 4-40+Elec cont., 1.6mm, 2.4mm, 3.2mm or more PCB thickness

D-Sub Pressfit

Manufacturer	FCI
Description	D-Subminiature Delta D Signal 15 way Socket RA Press-Fit Eurostyle standard, 200 cycles, Harpoons+Female Screw UNC 4-40+Elec cont., 1.6mm, 2.4mm, 3.2mm or more PCB thickness
Part Number	D15S82C4GV00LF

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Orientation	RoHS Lead Free Compatible	Gender	Number of contacts (Total)	Termination Style	Termination	Thickness (Board)	Most Popular Configuration	Mounting accessory	Durability (Plating - Mating cycles)
1	1	D15S82C4GV00LF	D-Subminiature Delta D Signal 15 way Socket RA Press-Fit Eurostyle standard, 200 cycles, Harpoons+Female Screw UNC 4-40+Elec cont., 1.6mm, 2.4mm, 3.2mm or more PCB thickness	Right Angle	Yes	Socket	15	Press-Fit	Eurostyle Standard	1.6 mm, 2.4 mm, 3.2 mm or more	Not Applicable	Harpoons + Female Screw UNC 4-40 + Electrical continuity	Std Class (>200 Mating Cycles)
