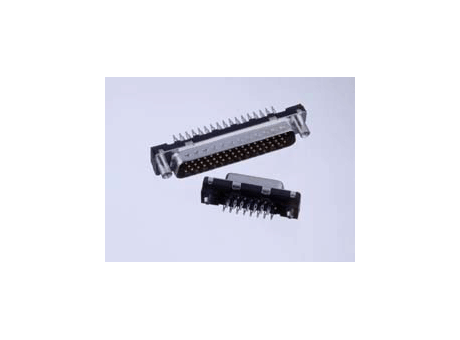

D-Subminiature Delta D Signal 15 way Pin Straight Press-Fit, 500 cycles, Female Screw UNC 4 - 40, 1.6 mm, 2.4 mm, 3.2 mm or more PCB thickness

D-Sub Pressfit

Manufacturer	FCI
Description	D-Subminiature Delta D Signal 15 way Pin Straight Press-Fit, 500 cycles, Female Screw UNC 4 - 40, 1.6 mm, 2.4 mm, 3.2 mm or more PCB thickness
Part Number	D15P91C6PV00LF

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Orientation	RoHS Lead Free Compatible	Gender	Number of contacts (Total)	Termination Style	Termination	Thickness (Board)	Most Popular Configuration	Mounting accessory	Durability (Plating - Mating cycles)
1	1	D15P91C6PV00LF	D-Subminiature Delta D Signal 15 way Pin Straight Press-Fit, 500 cycles, Female Screw UNC 4 - 40, 1.6 mm, 2.4 mm, 3.2 mm or more PCB thickness	Straight	Yes	Pin	15	Press-Fit	Europe Standard	1.6 mm, 2.4 mm, 3.2 mm or more	Yes	Female Screw UNC 4-40	High Perf (>500 Mating Cycles)
