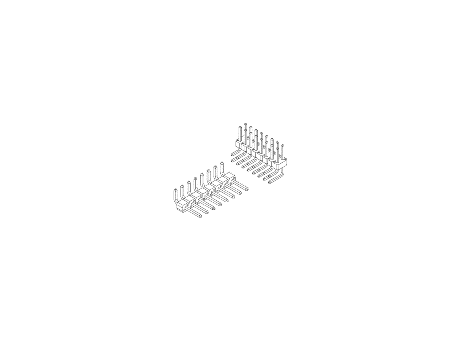

BergStik® Unshrouded Header, Through Hole, Single Row, 7 Positions 2.54 mm (0.1 in.), Right Angle

BergStik® Unshrouded Headers Right angle single row

Manufacturer	FCI
Description	BergStik® Unshrouded Header, Through Hole, Single Row, 7 Positions 2.54 mm (0.1 in.), Right Angle
Part Number	7731540107LF

CAD models

Index	Selector	Part Number	Description	Orientation	RoHS Lead Free Compatible	Number of rows	Length (Tail)	Plating (Contact area)	Length (Mating pin)	Number of contacts (per row)	Plating (Tail)	Attachment type (Board)
1	1	7731540107LF	BergStik® Unshrouded Header, Through Hole, Single Row, 7 Positions 2.54 mm (0.1 in.), Right Angle	Right Angle	Yes	1	2.41 mm (0.095 in.)	3.81 µm (150 µin.) Lead	5.84 mm (0.23 in.)	7	Tin	Through Hole
