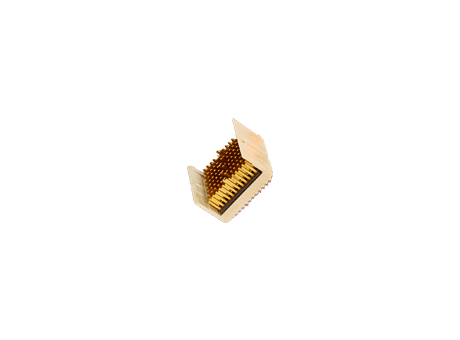

AIRMAX® 5-Pair, 120 -position, 2 mm pitch, 8 column, Vertical Header

Airmax VS® Backplane

Manufacturer	FCI
Description	AIRMAX® 5-Pair, 120 -position, 2 mm pitch, 8 column, Vertical Header
Part Number	100551401050011LF

CAD models

Index	Selector	Part Number	Description	Orientation	RoHS Lead Free Compatible	Number of contacts	Style	Pitch (Slot - min)	Stack Height
1	1	100551401050011LF	AIRMAX® 5-Pair, 120 -position, 2 mm pitch, 8 column, Vertical Header	Vertical	Yes	120	2 Wall Signal Header 2 mm	27 mm	12.5 mm
