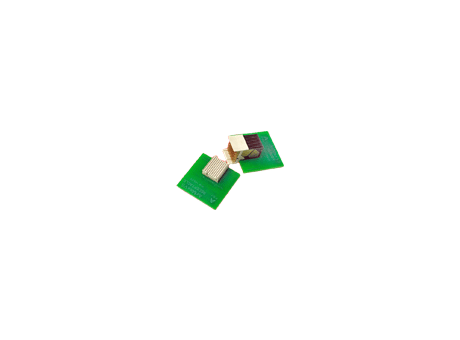

AIRMAX® 3-Pair, 85Ω, 54 -position, 2 mm pitch, 6 column, Right Angle Header

Airmax VS® 85 Ohms

Manufacturer	FCI
Description	AIRMAX® 3-Pair, 85Ω, 54 -position, 2 mm pitch, 6 column, Right Angle Header
Part Number	10097256101LF

CAD models

Index	Selector	Part Number	Description	Orientation	RoHS Lead Free Compatible	Number of contacts	Style	Pitch (Slot - min)
1	1	10097256101LF	AIRMAX® 3-Pair, 85Ω, 54 -position, 2 mm pitch, 6 column, Right Angle Header	Right Angle	Yes	54	4 wall signal header 2 mm	17 mm
