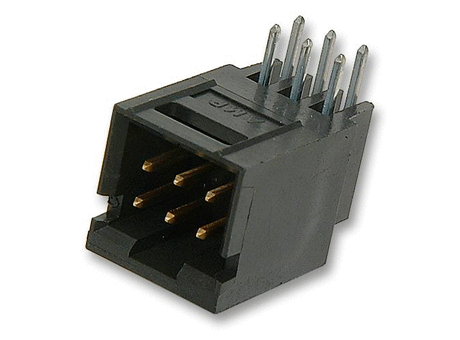

Wire-To-Board Connector, Right Angle, 2.54 mm, 10 Contacts, Header, AMPMODU Mod II Series

Manufacturer	FARNELL
Description	Wire-To-Board Connector, Right Angle, 2.54 mm, 10 Contacts, Header, AMPMODU Mod II Series
Part Number	5-102617-3
Supplier Name	Farnell or Newark
Connector Type	Wire to Board
Contact Plating	Gold Plated Contacts
Contact Termination	Through Hole Right Angle
Contact Termination Type	Through Hole
Current Rating	3A
Gender	Header
No. of Contacts	10Contacts
Operating Temperature Max	105°C
Operating Temperature Min	-65°C
Product Range	AMPMODU Mod II Series

Voltage AC	300V
Working Voltage	300V
Brand Name	TE CONNECTIVITY
Contact Material	Phosphor Bronze
No. of Rows	2Rows
Termination Method	Solder
Voltage Rating V AC	300V
Approval Category	CSA, UL
Housing Type	Black Thermoplastic UL94V-0
Pitch Spacing	2.54mm
Insulation Resistance	500Mohm
Lead Spacing	2.54mm
Features	1.68 mm End Dimension
Tail Length	3.43mm

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Connector Type	Contact Plating	Contact Termination	Contact Termination Type	Current Rating	Gender	No. of Contacts	Operating Temperature Max	Operating Temperature Min	Product Range	Voltage AC	Working Voltage	Brand Name	Supplier Name	Contact Material	No. of Rows	Termination Method	Voltage Rating V AC	Approval Category	Housing Type	Pitch Spacing	Insulation Resistance	Lead Spacing	Features	Tail Length
1	1	5-102617-3	Wire-To-Board Connector, Right Angle, 2.54 mm, 10 Contacts, Header, AMPMODU Mod II Series	Wire to Board	Gold Plated Contacts	Through Hole Right Angle	Through Hole	3A	Header	10Contacts	105°C	-65°C	AMPMODU Mod II Series	300V	300V	TE CONNECTIVITY	Farnell or Newark	Phosphor Bronze	2Rows	Solder	300V	CSA, UL	Black Thermoplastic UL94V-0	2.54mm	500Mohm	2.54mm	1.68 mm End Dimension	3.43mm

Documentation

Technical Data Sheet

Drawing

3D Product Image
