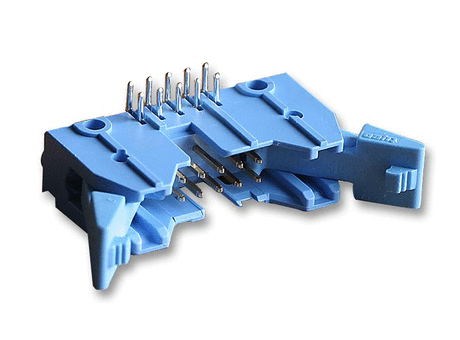

Wire-To-Board Connector, Right Angle, 2.54 mm, 10 Contacts, Header, AMP-LATCH Series, Through Hole

Manufacturer	FARNELL
Description	Wire-To-Board Connector, Right Angle, 2.54 mm, 10 Contacts, Header, AMP-LATCH Series, Through Hole
Part Number	2-5499141-1
Supplier Name	Farnell or Newark
Contact Material	Phosphor Bronze
Operating Temperature Max	125°C
Operating Temperature Min	-55°C
Product Range	AMP-LATCH Series
Brand Name	AMP - TE CONNECTIVITY
Current Rating	1A
Insulation Resistance	1Gohm
Contact Plating	Gold Plated Contacts
Contact Termination	Through Hole Right Angle

Contact Termination Type	Through Hole
Gender	Header
Connector Type	Wire to Board
Flammability Rating	UL94V-0
Material	Glass Reinforced Thermoplastic
No. of Contacts	10Contacts
Termination Method	Solder
No. of Rows	2Rows
Pitch Spacing	2.54mm
Connector Mounting Orientation	PC Board
No. of Mating Cycles	200
Withstand Voltage	500V
Polarisation Type	Bump/Clip

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Contact Material	Operating Temperature Max	Operating Temperature Min	Product Range	Brand Name	Supplier Name	Current Rating	Insulation Resistance	Contact Plating	Contact Termination	Contact Termination Type	Gender	Connector Type	Flammability Rating	Material	No. of Contacts	Termination Method	No. of Rows	Pitch Spacing	Connector Mounting Orientation	No. of Mating Cycles	Withstand Voltage	Polarisation Type
1	1	2-5499141-1	Wire-To-Board Connector, Right Angle, 2.54 mm, 10 Contacts, Header, AMP-LATCH Series, Through Hole	Phosphor Bronze	125°C	-55°C	AMP-LATCH Series	AMP - TE CONNECTIVITY	Farnell or Newark	1A	1Gohm	Gold Plated Contacts	Through Hole Right Angle	Through Hole	Header	Wire to Board	UL94V-0	Glass Reinforced Thermoplastic	10Contacts	Solder	2Rows	2.54mm	PC Board	200	500V	Bump/Clip

Documentation

Technical Data Sheet

Drawing

3D Product Image
